LMS700KF25-0 7.0 inch Samsung LCD Panel TN LCM 800×480 350nits WLED TTL 40pins

LMS700KF25-0 7.0 inch Samsung LCD Panel TN LCM 800×480 350nits WLED TTL 40pins

LMS700KF25-0 7.0 inch Samsung LCD Panel TN LCM 800×480 350nits WLED TTL 40pins

Product Details:

Place of Origin: Japan
Brand Name: Samsung
Certification: ISO9001
Model Number: LMS700KF25-0

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY
Contact Now
Detailed Product Description
Series: LMS700KF Keywords Desc.: Samsung 7.0" TN LCM 800×480 350nits WLED TTL 40pins
Product Class: Graphic LCD Display Product Tags: Color TFT-LCD,Transflective LCD,Sunlight Readable LCD
Application: MID UMPC,MP4 PMP Panel Type: A-Si TFT-LCD
Panel Composition: LCM Panel Size: 7.0"
Resolution: 800×480 Aspect Ratio: 15:9 (W:H)
Form Factor: Flat Rectangle Display Orientation: Landscape Type
Active Area: 152.4 (W) × 91.44 (H) Mm (A.A) Viewing Area: 155.4 (W) × 94.44 (H) Mm (V.A)
Outline Dimension: 163.2 (W) × 104 (H) Mm Max. Depth: 3.6 Mm
Weight: 115g (Typ.) LC Family: TN
Polarizer: TMR Brightness: 350 (Typ.)

Samsung LMS700KF25-0 7.0 inch TN LCM 800×480 350nits WLED TTL 40pins

LMS700KF25-0  Main Parameters

Panel Brand :SAMSUNG SMD
Panel Model :LMS700KF25-0
Panel Type :a-Si TFT-LCD , LCM
Panel Size :7.0 inch
Resolution :800(RGB)×480 , WVGA
Display Mode :TN, Normally White, TMR
Active Area :152.4×91.44 mm
Outline :163.2×104×3.6 mm
Brightness :350 cd/m2 (Typ.)
Contrast Ratio :700 : 1 (Typ.)
Display Colors :16.2M (6-bit + FRC)
Response Time :16 (Typ.)(Tr+Td)
Viewing Angle :70/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :8S3P WLED
Signal Interface :CMOS (1 ch, 8-bit) , 40 pins



SAMSUNG SMD LMS700KF25-0 Mechanical Features

Dot Resolution :800(RGB)×480 (WVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :133 PPI
Aspect Ratio :15:9 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.0635×0.1905 mm (H×V)
Pixel Pitch :0.1905×0.1905 mm (H×V)
Weight :115g (Typ.)
Active Area :152.4×91.44 mm (H×V)
Bezel Area :155.4×94.44 mm (H×V)
Outline Dimension :163.2×104 mm (H×V)
Outline Depth :3.4±0.2 mm
Holes & Brackets :Without
Landscape or Portrait :Landscape type


FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.

Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
AMS549HQ02Samsung5.5"720×1280
AMS520BQ12-0Samsung5.2"1080×1920
AMS497DX12-0Samsung5.0"720×1280
AMS163AN01Samsung1.63"320×320
AMS510CV02Samsung5.1"1080×1920
AMS510CV01Samsung5.1"1080×1920
AMS302AK03Samsung3.0"720×480
AMS353FD01-0Samsung3.5"480×800
AMS499QP89-0Samsung5.0"1080×1920
AMS529BY03Samsung5.3"1080×1920
SDC 1.63 320×320Samsung1.63"320×320
AMS499QP42-0Samsung5.0"1080×1920

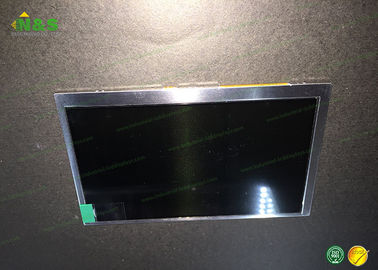

LMS700KF25-0 Picture

LMS700KF25-0 7.0 inch Samsung LCD Panel TN LCM 800×480 350nits WLED TTL 40pins
