Product Details:
|
| Series: | HSD084ISN1-A | Keywords Desc.: | HannStar 8.4" TN LCM 800×600 380nits WLED TTL 60pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Digital Photo Frame,Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 8.4" |
| Resolution: | 800×600 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 170.4 (W) × 127.8 (H) Mm (A.A) | Viewing Area: | 173.4 (W) × 130.8 (H) Mm (V.A) |
| Outline Dimension: | 189.7 (W) × 149.4 (H) Mm | Max. Depth: | 5.3 Mm |
| Weight: | 235g (Typ.) | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 380 (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||
HannStar 8.4 inch TN LCM 800×600 380nits WLED TTL 60pins HSD084ISN1-A01
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
HSD084ISN1-A01 Detailed Product Description
| Panel Brand : | HannStar |
| Panel Model : | HSD084ISN1-A01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 170.4×127.8 mm |
| Outline : | 189.7×149.4×5.3 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 380 cd/m2 (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Response Time : | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S9P WLED |
| Signal Interface : | TTL (1 ch, 6/8-bit) , 60 pins |
| Input Voltage : | 3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Panel Size : | 8.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 235g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 170.4×127.8 mm (H×V) |
| Bezel Area : | 173.4×130.8 mm (H×V) |
| Outline Dimension : | 189.7×149.4 mm (H×V) |
| Outline Depth : | 5.0±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
| HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
| HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
| HSD050B8W7-C00 | HannStar | 5.0" | 480×854 |
| HSD070FHW1-D00 | HannStar | 7.0" | 720×1280 |
| HSD050B8W2-C00 | HannStar | 5.0" | 480×854 |
| HSD047BHW1-D00 | HannStar | 4.7" | 720×1280 |
| HSD047BMW1-C00 | HannStar | 4.7" | 540×960 |
| HSD045BMW3-D00 | HannStar | 4.5" | 540×960 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

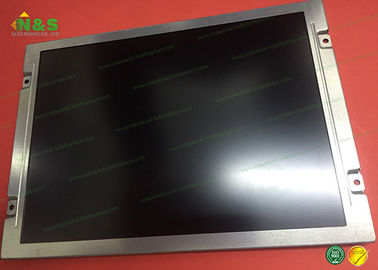

HSD084ISN1-A01 Picture
