Product Details:
|
| Series: | KCS057QV1AA | Keywords Desc.: | Kyocera 5.7" 320×240 CSTN-LCD Normally Black Transmissive CCFL Paralle |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | CSTN-LCD Graphic Module |
| Application: | Industrial Application | Panel Type: | CSTN-LCD |
| Panel Composition: | LCM | Panel Size: | 5.7" |
| Resolution: | 320×240 | Form Factor: | Flat Rectangle Display |
| Active Area: | 115.18 (W) × 86.38 (H) Mm (A.A) | Viewing Area: | 120.2 (W) × 91.4 (H) Mm (V.A) |
| Outline Dimension: | 154.6 (W) × 114.8 (H) Mm | Max. Depth: | 9 Mm |
| Polarizer: | Transmissive | Color Mode: | Normally Black |
| Colors Amount: | Color | Driving Duty: | 1/240 |
| Backlight Type: | CCFL | Interface Type: | Parallel Data |
| High Light: | industrial lcd screen,industrial lcd panel |
||
Kyocera KCS057QV1AA-G03 5.7 inch 320×240 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 15pins
KCS057QV1AA-G03 Main Parameters
| Panel Brand : | Kyocera |
| Panel Model : | KCS057QV1AA-G03 |
| Panel Type : | CSTN-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | STN, Normally Black, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 154.6×114.8×9 mm |
| Surface : | Glare (Haze 0%) |
| Brightness : | 110 cd/m2 (Typ.) |
| Contrast Ratio : | 25:1 (Typ.) |
| Display Colors : | Color |
| Response Time : | 220/110 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/30/30 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 75Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel Data (8-bit) , 15 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | 200g (Typ.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 120.2×91.4 mm (H×V) |
| Outline Dimension : | 154.6×114.8 mm (H×V) |
| Outline Depth : | 8.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |

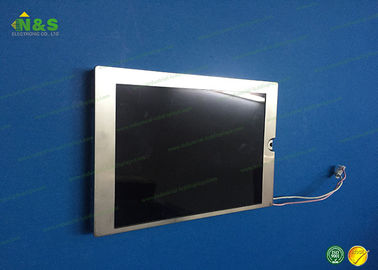

KCS057QV1AA-G03 Picture
