Product Details:
|
| Series: | KCB104VG2BA | Keywords Desc.: | Kyocera 10.4" 640×480 CSTN-LCD Normally Black Transmissive CCFL Parall |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | CSTN-LCD Graphic Module |
| Application: | Industrial Application | Panel Type: | CSTN-LCD |
| Panel Composition: | LCM | Panel Size: | 10.4" |
| Resolution: | 640×480 | Form Factor: | Flat Rectangle Display |
| Active Area: | 211.2 (W) × 158.4 (H) Mm (A.A) | Viewing Area: | 217.2 (W) × 164.4 (H) Mm (V.A) |
| Outline Dimension: | 264 (W) × 183 (H) Mm | Max. Depth: | 9 Mm |
| Polarizer: | Transmissive | Color Mode: | Normally Black |
| Colors Amount: | Color | Driving Duty: | 1/240 |
| Backlight Type: | CCFL | Interface Type: | Parallel Data |
| High Light: | industrial touch screen display,industrial lcd panel |
||
Kyocera KCB104VG2BA-A21 10.4 inch 640×480 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 29pins
KCB104VG2BA-A21 Characteristic
| Panel Brand : | Kyocera |
| Panel Model : | KCB104VG2BA-A21 |
| Panel Type : | CSTN-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | STN, Normally Black, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 264×183×9 mm |
| Surface : | Antiglare |
| Brightness : | 150 cd/m2 (Typ.) |
| Contrast Ratio : | 20:1 (Typ.) |
| Display Colors : | Color |
| Response Time : | 16/80 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/35/20 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 75Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | Parallel Data (8-bit) , 29 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 540g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 217.2×164.4 mm (H×V) |
| Outline Dimension : | 264×183 mm (H×V) |
| Outline Depth : | 8.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (4-R1.7) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AGN | Kyocera | 2.8" | 128×64 |

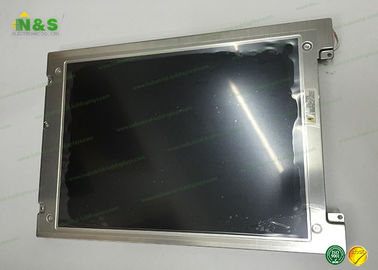

KCB104VG2BA-A21 Picture
