Tianma TM043NBH02 4.3 inch TN LCM 480×272 280nits WLED TTL 40pins

Tianma TM043NBH02   	4.3 inch TN LCM 480×272 280nits WLED TTL 40pins
Tianma TM043NBH02   	4.3 inch TN LCM 480×272 280nits WLED TTL 40pins

Large Image :  Tianma TM043NBH02 4.3 inch TN LCM 480×272 280nits WLED TTL 40pins

Product Details:
Place of Origin: Japan
Brand Name: Tianma
Certification: ISO9001
Model Number: TM043NBH02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 working days after payment confirmation
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY

Tianma TM043NBH02 4.3 inch TN LCM 480×272 280nits WLED TTL 40pins

Description
Series: TM043NBH Keywords Desc.: Tianma 4.3" TN LCM 480×272 280nits WLED TTL 40pins
Product Class: Graphic LCD Display Product Tags: Color TFT-LCD,Resistive Touch LCD,Transmissive LCD
Application: MP4 PMP,Pocket TV,Portable Navigation Panel Type: A-Si TFT-LCD
Panel Composition: LCM Panel Size: 4.3"
Resolution: 480×272 Aspect Ratio: 16:9 (W:H)
Form Factor: Flat Rectangle Display Orientation: Landscape Type
Active Area: 95.04 (W) × 53.856 (H) Mm (A.A) Viewing Area: 98.3 (W) × 57.1 (H) Mm (V.A)
Outline Dimension: 105.5 (W) × 67.2 (H) Mm Max. Depth: 4.4 Mm
Weight: 58.4g LC Family: TN
Polarizer: Transmissive Brightness: 280 (Typ.)
High Light:

industrial lcd screen

,

industrial lcd panel

Tianma TM043NBH02 4.3 inch TN LCM 480×272 280nits WLED TTL 40pins



TM043NBH02  Main Parameters

Panel Brand : TIANMA
Panel Model : TM043NBH02
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 4.3 inch
Resolution : 480(RGB)×272 , WQVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 95.04×53.856 mm
Outline : 105.5×67.2×4.4 mm
Surface : Hard coating (3H)
Brightness : 280 cd/m2 (Typ.)
Contrast Ratio : 450:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 50%
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 5S2P WLED
Signal Interface : Parallel RGB (1 ch, 8-bit) , 40 pins
Input Voltage : 3.3V (Typ.)



TIANMA TM043NBH02 Mechanical Features

Panel Size : 4.3 inch
Dot Resolution : 480(RGB)×272 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 128 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.066×0.198 mm (H×V)
Pixel Pitch : 0.198×0.198 mm (H×V)
Weight : 58.4g
Surface : Hard coating (3H)
Active Area : 95.04×53.856 mm (H×V)
Bezel Area : 98.3×57.1 mm (H×V)
Outline Dimension : 105.5×67.2 mm (H×V)
Outline Depth : 4.1±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Embeded (4-wire Resistive)



FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.



N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.

7) Feel free to contact to us if there is any problems during the shipment process.



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
TM240160XCFWGRA Tianma 2.2" 240×160
TM128128F6CCWGWC1 Tianma 1.44" 128×128
TM12864G3CCWGWA-1 Tianma 2.4" 128×64
TM050XYSP02 Tianma 5.0" 540×960
TM050JYHN11-00 Tianma 5.0" 720×1280
TM055JYSP08 Tianma 5.5" 720×1280
TM040XYHP01 Tianma 4.0" 640×1136
TM055JYSP03 Tianma 5.5" 720×1280

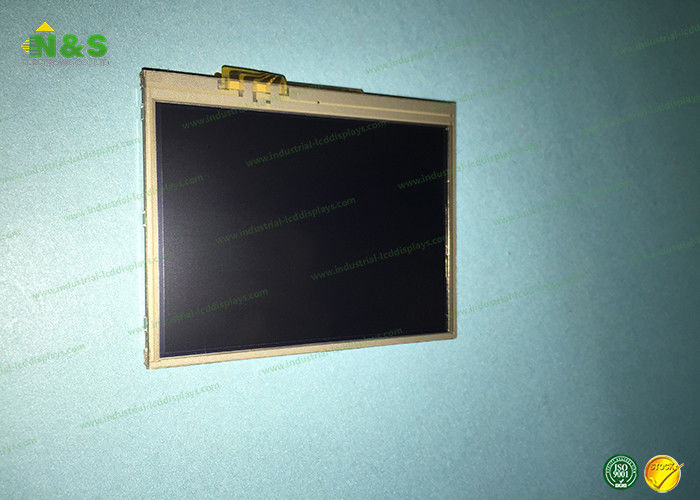

TM043NBH02 Picture
