Product Details:
|
Series: | TM035KDH | Keywords Desc.: | Tianma 3.5" TN LCM 320×240 300nits WLED Parallel/Serial 54pins |
---|---|---|---|
Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
Application: | Digital Still Camera,Digital Video Camera | Panel Type: | A-Si TFT-LCD |
Panel Composition: | LCM | Panel Size: | 3.5" |
Resolution: | 320×240 | Aspect Ratio: | 4:3 (W:H) |
Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
Active Area: | 70.08 (W) × 52.56 (H) Mm (A.A) | Viewing Area: | 72.88 (W) × 55.36 (H) Mm (V.A) |
Outline Dimension: | 76.9 (W) × 63.9 (H) Mm | Max. Depth: | 3.35 Mm |
Weight: | 30.0g (Typ.) | LC Family: | TN |
Polarizer: | Transmissive | Brightness: | 300 (Typ.) |
High Light: | industrial touch screen display,industrial lcd panel |
Tianma TM035KDH03 3.5 inch TN LCM 320×240 300nits WLED Parallel/Serial 54pins
TM035KDH03 Main Parameters
Panel Brand : | TIANMA |
Panel Model : | TM035KDH03 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 3.5 inch |
Resolution : | 320(RGB)×240 , QVGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 70.08×52.56 mm |
Outline : | 76.9×63.9×3.35 mm |
Surface : | Clear, Hard coating (3H) |
Brightness : | 300 cd/m2 (Typ.) |
Contrast Ratio : | 500:1 (Typ.) |
Display Colors : | 16.7M (8-bit) , CIE1931 50% |
Response Time : | 25 (Typ.)(Tr+Td) |
Viewing Angle : | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 6S1P WLED |
Signal Interface : | Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins |
Panel Size : | 3.5 inch |
Dot Resolution : | 320(RGB)×240 (QVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 115 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.073×0.219 mm (H×V) |
Pixel Pitch : | 0.219×0.219 mm (H×V) |
Weight : | 30.0g (Typ.) |
Surface : | Clear, Hard coating (3H) |
Active Area : | 70.08×52.56 mm (H×V) |
Bezel Area : | 72.88×55.36 mm (H×V) |
Outline Dimension : | 76.9×63.9 mm (H×V) |
Outline Depth : | 3.15±0.2 mm |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
TM050XYSP02 | Tianma | 5.0" | 540×960 |
TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
TM055JYSP08 | Tianma | 5.5" | 720×1280 |
TM040XYHP01 | Tianma | 4.0" | 640×1136 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

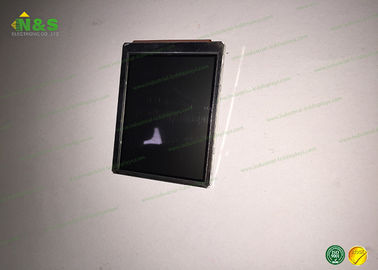

TM035KDH03 Picture
