Product Details:
|
Series: | TM043NBH | Keywords Desc.: | Tianma 4.3" TN LCM 480×272 400nits WLED TTL 45pins |
---|---|---|---|
Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Resistive Touch LCD,Transmissive LCD |
Application: | MP4 PMP,Pocket TV,Portable Navigation | Panel Type: | A-Si TFT-LCD |
Panel Composition: | LCM | Panel Size: | 4.3" |
Resolution: | 480×272 | Aspect Ratio: | 16:9 (W:H) |
Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
Active Area: | 95.04 (W) × 53.856 (H) Mm (A.A) | Viewing Area: | 99.2 (W) × 57.1 (H) Mm (V.A) |
Outline Dimension: | 105.5 (W) × 67.2 (H) Mm | Max. Depth: | 5.5 Mm |
Weight: | 56.0g | LC Family: | TN |
Polarizer: | Transmissive | Brightness: | 400 (Typ.) |
High Light: | industrial touch screen display,industrial lcd screen |
Tianma TM043NBH01 4.3 inch TN LCM 480×272 400nits WLED TTL 45pins
TM043NBH01 Characteristic
Panel Brand : | TIANMA |
Panel Model : | TM043NBH01 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 4.3 inch |
Resolution : | 480(RGB)×272 , WQVGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 95.04×53.856 mm |
Outline : | 105.5×67.2×5.5 mm |
Surface : | Antiglare |
Brightness : | 400 cd/m2 (Typ.) |
Contrast Ratio : | 450:1 (Typ.) |
Display Colors : | 16.7M (8-bit) , CIE1931 50% |
Response Time : | 20 (Typ.)(Tr+Td) |
Viewing Angle : | 70/70/70/50 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 10S1P WLED |
Signal Interface : | Parallel RGB (1 ch, 8-bit) , 45 pins |
Panel Size : | 4.3 inch |
Dot Resolution : | 480(RGB)×272 (WQVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 128 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.066×0.198 mm (H×V) |
Pixel Pitch : | 0.198×0.198 mm (H×V) |
Weight : | 56.0g |
Surface : | Antiglare |
Active Area : | 95.04×53.856 mm (H×V) |
Bezel Area : | 99.2×57.1 mm (H×V) |
Outline Dimension : | 105.5×67.2 mm (H×V) |
Outline Depth : | 4.15/5.5 (Typ./Max.) mm |
Landscape or Portrait : | Landscape type |
Touch Panel : | Embeded (4-wire Resistive) |
Our Advantages
Packing & Delivery for our LCD Screen Panel Replacements:
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
TM050XYSP02 | Tianma | 5.0" | 540×960 |
TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
TM055JYSP08 | Tianma | 5.5" | 720×1280 |
TM040XYHP01 | Tianma | 4.0" | 640×1136 |

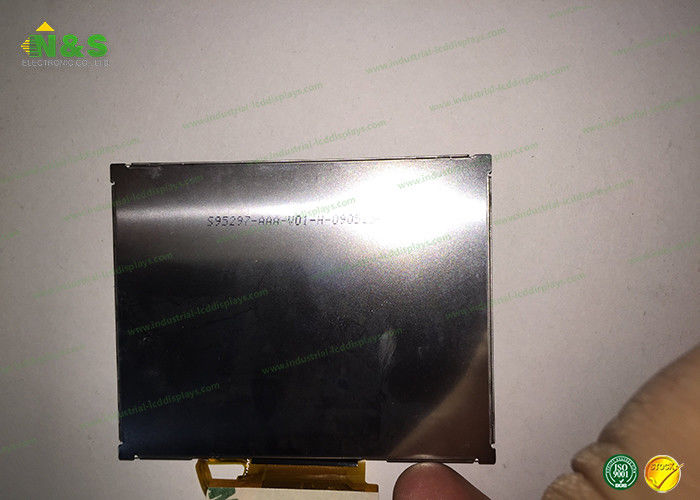

TM043NBH01 Picture
