Product Details:
|
| Series: | TM035HBHT | Keywords Desc.: | Tianma 3.5" LCM 240×320 80nits WLED TTL 50pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Resistive Touch LCD,Transflective LCD,Sunlight Readable |
| Application: | Handheld Product | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 3.5" |
| Resolution: | 240×320 | Aspect Ratio: | 3:4 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Portrait Type |
| Active Area: | 53.64 (W) × 71.52 (H) Mm (A.A) | Outline Dimension: | 64 (W) × 85 (H) Mm |
| Max. Depth: | 4.43 Mm | Weight: | 44.4g |
| Polarizer: | Transflective | Brightness: | 80 (Typ.) |
| Contrast Ratio: | 150:1 (Typ.) | Viewing Angle: | 40/45/55/40 (Typ.)(CR10) (L/R/U/D) |
| High Light: | industrial touch screen display,industrial lcd panel |
||
3.5 inch Tianma TM035HBHT6 LCM 240×320 80nits WLED TTL 50pins
TM035HBHT6 General Features
| Panel Brand : | TIANMA |
| Panel Model : | TM035HBHT6 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 240(RGB)×320 , QVGA |
| Display Mode : | ECB, Normally White, Transflective |
| Active Area : | 53.64×71.52 mm |
| Outline : | 64×85×4.43 mm |
| Surface : | Hard coating |
| Brightness : | 80 cd/m2 (Typ.) |
| Contrast Ratio : | 150:1 (Typ.)(Transmissive) 2.5:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 37% |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 40/45/55/40 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 6S1P WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) + SPI , 50 pins |
| Input Voltage : | 2.8/15.0/-10.0V (Typ.)(VCC/VGH/VGL) |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
| Weight : | 44.4g |
| Surface : | Hard coating |
| Active Area : | 53.64×71.52 mm (H×V) |
| Outline Dimension : | 64×85 mm (H×V) |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| TM240160XCFWGRA | Tianma | 2.2" | 240×160 |
| TM128128F6CCWGWC1 | Tianma | 1.44" | 128×128 |
| TM12864G3CCWGWA-1 | Tianma | 2.4" | 128×64 |
| TM050XYSP02 | Tianma | 5.0" | 540×960 |
| TM050JYHN11-00 | Tianma | 5.0" | 720×1280 |
| TM055JYSP08 | Tianma | 5.5" | 720×1280 |
| TM040XYHP01 | Tianma | 4.0" | 640×1136 |
| TM055JYSP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP03 | Tianma | 5.5" | 720×1280 |
| TM055JYHP01 | Tianma | 5.5" | 720×1280 |

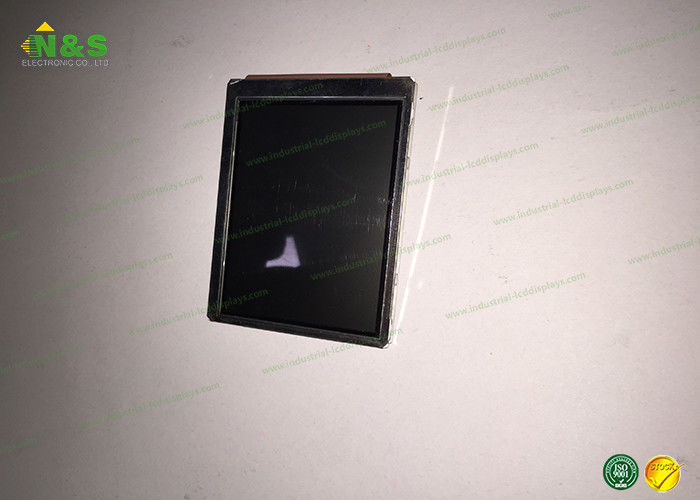

TM035HBHT6 Picture
