Product Details:
|
Series: | G057VN01 | Keywords Desc.: | AUO 5.7" TN LCM 640×480 700nits WLED TTL 33pins |
---|---|---|---|
Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Wide Temperature LCD,High Brightness LCD,Transmissive LC |
Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
Panel Composition: | LCM | Panel Size: | 5.7" |
Resolution: | 640×480 | Aspect Ratio: | 4:3 (W:H) |
Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
Active Area: | 115.2 (W) × 86.4 (H) Mm (A.A) | Viewing Area: | 118.2 (W) × 89.4 (H) Mm (V.A) |
Outline Dimension: | 144 (W) × 104.6 (H) Mm | Weight: | 160/175g (Typ./Max.) |
LC Family: | TN | Polarizer: | Transmissive |
Brightness: | 700 (Typ.) | Contrast Ratio: | 800:1 (Typ.) |
High Light: | industrial touch screen display,industrial lcd screen |
AUO G057VN01 V1 5.7 inch TN LCM 640×480 700nits WLED TTL 33pins
G057VN01 V1 Main Parameters
Panel Brand : | AUO |
Panel Model : | G057VN01 V1 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 5.7 inch |
Resolution : | 640(RGB)×480 , VGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 115.2×86.4 mm |
Outline : | 144×104.6 mm |
Surface : | Antiglare, Hard coating (3H) |
Brightness : | 700 cd/m2 (Typ.) |
Contrast Ratio : | 800:1 (Typ.) |
Display Colors : | 262K (6-bit) , CIE1931 50% |
Response Time : | 15/10 (Typ.)(Tr/Td) |
Viewing Angle : | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | WLED |
Signal Interface : | CMOS (1 ch, 6-bit) , 33 pins |
Input Voltage : | 3.3V (Typ.)(VDD) |
Panel Size : | 5.7 inch |
Dot Resolution : | 640(RGB)×480 (VGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 141 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.060×0.180 mm (H×V) |
Pixel Pitch : | 0.180×0.180 mm (H×V) |
Weight : | 160/175g (Typ./Max.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 115.2×86.4 mm (H×V) |
Bezel Area : | 118.2×89.4 mm (H×V) |
Outline Dimension : | 144×104.6 mm (H×V) |
Outline Depth : | 12.3 (Typ.) mm |
Holes & Brackets : | Rear mounting holes (4-Φ2.6) |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
A060SE02 V1 | AUO | 6.0" | 800×600 |
A090XE01 V6 | AUO | 9.0" | 1024×768 |
A090XE01 V5 | AUO | 9.0" | 1024×768 |
A043SE01 V3 | AUO | 4.3" | 600×800 |
H283QN00 V6 | AUO | 2.8" | 240×320 |
M270DAN01.0 CELL | AUO | 27.0" | 2560×1440 |
H644DAN01.1 | AUO | 6.5" | 1080×1920 |
B140RTN02.0 CELL | AUO | 14.0" | 1600×900 |
B156HW03 V0 CELL | AUO | 15.6" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

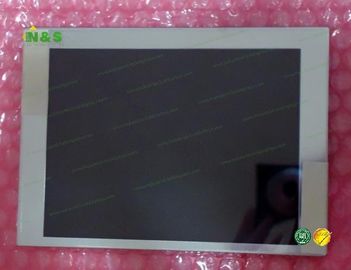

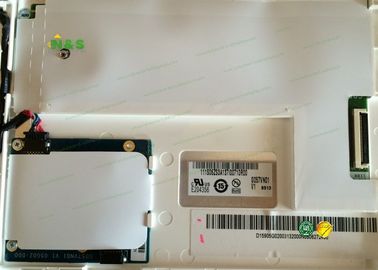

G057VN01 V1 Picture
