Product Details:
|
| Series: | G084SN05 | Keywords Desc.: | AUO 8.4" TN LCM 800×600 450nits WLED LVDS 20pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Wide Temperature LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 8.4" |
| Resolution: | 800×600 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 170.4 (W) × 127.8 (H) Mm (A.A) | Viewing Area: | 174.15 (W) × 131.2 (H) Mm (V.A) |
| Outline Dimension: | 203 (W) × 142.5 (H) Mm | Max. Depth: | 8 Mm |
| Weight: | 250g (Typ.) | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 450 (Typ.) |
| High Light: | auo lcd screen,auo lcd display |
||
G084SN05 V9 AUO LCD Panel 8.4 inch TN LCM 800×600 450nits WLED LVDS
G084SN05 V9 Main Parameters
| Panel Brand : | AUO |
| Panel Model : | G084SN05 V9 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 170.4×127.8 mm |
| Outline : | 203×142.5×8 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 450 cd/m2 (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 45% |
| Response Time : | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 strings WLED |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 8.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 250g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 170.4×127.8 mm (H×V) |
| Bezel Area : | 174.15×131.2 mm (H×V) |
| Outline Dimension : | 203×142.5 mm (H×V) |
| Outline Depth : | 8.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.0, 2-R1.5) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
| T215HVN01.2 CELL | AUO | 21.5" | 1920×1080 |
| B070ATN02.0 CELL | AUO | 7.0" | 600×1024 |
| M238DAN01.3 CELL | AUO | 23.8" | 2560×1440 |
| B070AAN01.0 | AUO | 7.0" | 600×1024 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

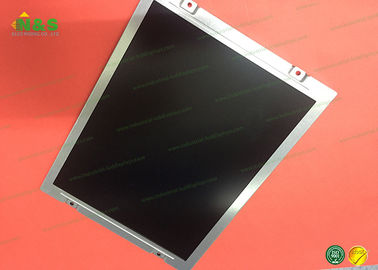

G084SN05 V9 Picture
