Product Details:
|
| Series: | SX14Q004 | Keywords Desc.: | KOE 5.7" 320×240 CSTN-LCD Normally Black Transmissive CCFL Parallel Da |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | CSTN-LCD Graphic Module |
| Application: | Industrial Application | Panel Type: | CSTN-LCD |
| Panel Composition: | LCM | Panel Size: | 5.7" |
| Resolution: | 320×240 | Form Factor: | Flat Rectangle Display |
| Active Area: | 115.18 (W) × 86.38 (H) Mm (A.A) | Viewing Area: | 122.0 (W) × 92.0 (H) Mm (V.A) |
| Outline Dimension: | 167 (W) × 109 (H) Mm | Max. Depth: | 9.2 Mm |
| Polarizer: | Transmissive | Color Mode: | Normally Black |
| Viewing Direction: | 6 O'clock | Colors Amount: | Color |
| Driving Duty: | 1/240 | Backlight Type: | CCFL |
| High Light: | industrial lcd screen,industrial lcd panel |
||
5.7 inch SX14Q004 KOE 320×240 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 16pins
SX14Q004 Quick Details:
| Panel Brand : | HITACHI |
| Panel Model : | SX14Q004 |
| Panel Type : | CSTN-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | STN, Normally Black, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 167×109×9.2 mm |
| Brightness : | 200 cd/m2 (Typ.) |
| Contrast Ratio : | 40:1 (Typ.) |
| Display Colors : | Color |
| Response Time : | 250/200 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/35/45 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 70Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel Data (8-bit) , 16 pins |
| Input Voltage : | 3.3V (Typ.) |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| Display Mode : | STN, Normally Black, Transmissive |
| Brightness : | 200 cd/m2 (Typ.) |
| Contrast Ratio : | 40 : 1 (Typ.) (Transmissive) |
| Display Color : | Color () |
| Response Time : | 250/200 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/35/45 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.310 |

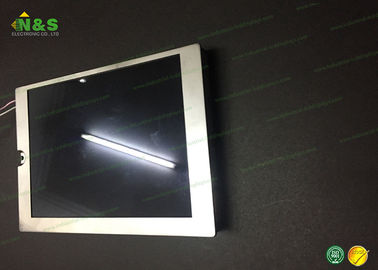

SX14Q004 Picture
