Product Details:
|
Series: | SP14Q002 | Keywords Desc.: | KOE 5.7" 320×240 FSTN-LCD Black/White (Negative) Transmissive CCFL Par |
---|---|---|---|
Product Class: | Graphic LCD Display | Product Tags: | FSTN-LCD Graphic Module |
Application: | Industrial Application | Panel Type: | FSTN-LCD |
Panel Composition: | LCM | Panel Size: | 5.7" |
Resolution: | 320×240 | Form Factor: | Flat Rectangle Display |
Active Area: | 115.185 (W) × 86.385 (H) Mm (A.A) | Viewing Area: | 122.0 (W) × 92.0 (H) Mm (V.A) |
Outline Dimension: | 167 (W) × 109 (H) Mm | Max. Depth: | 10 Mm |
Polarizer: | Transmissive | Color Mode: | Black/White (Negative) |
Viewing Direction: | 6 O'clock | Colors Amount: | Monochrome |
Driving Duty: | 1/240 | Backlight Type: | CCFL |
High Light: | industrial touch screen display,industrial lcd panel |
SP14Q002-A1 KOE 5.7 inch 320×240 FSTN-LCD Black/White (Negative) Transmissive CCFL Parallel Data 14pins
SP14Q002-A1 Quick Details:
Panel Brand : | HITACHI |
Panel Model : | SP14Q002-A1 |
Panel Type : | FSTN-LCD , LCM |
Panel Size : | 5.7 inch |
Resolution : | 320×240 , QVGA |
Display Mode : | STN, Black/White (Negative), Transmissive |
Active Area : | 115.185×86.385 mm |
Outline : | 167×109×10 mm |
Surface : | Antiglare |
Brightness : | 140 cd/m2 (Typ.) |
Contrast Ratio : | 25:1 (Typ.) |
Display Colors : | Monochrome |
Response Time : | 120/150 (Typ.)(Tr/Td) |
Viewing Angle : | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
Frequency : | 75Hz |
Lamp Type : | 1 pcs CCFL |
Signal Interface : | Parallel Data (4-bit) , 14 pins |
Input Voltage : | 3.3/5.0V (Typ.)(VDD) |
Panel Size : | 5.7 inch |
Dot Resolution : | 320×240 (QVGA) |
Pixel Configuration : | Rectangle |
Pixel Density : | 70 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.360×0.360 mm (H×V) |
Pixel Pitch : | 0.360×0.360 mm (H×V) |
Surface : | Antiglare |
Active Area : | 115.185×86.385 mm (H×V) |
Bezel Area : | 122.0×92.0 mm (H×V) |
Outline Dimension : | 167×109 mm (H×V) |
Outline Depth : | 8.5/10.0 (Typ.Max.) mm |
Holes & Brackets : | Face mounting holes (4-Φ3.5) on left, right bezel |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
SP24V01L0ALZZ | KOE | 9.4" | 640×480 |
SP14N02L6ALCZ | KOE | 5.1" | 240×128 |
SP12N01L6ALCZ | KOE | 4.8" | 256×64 |
SP24V001-A | KOE | 9.4" | 640×480 |
SP10Q010-T | KOE | 3.8" | 320×240 |
SP10Q010-ZZA | KOE | 3.8" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

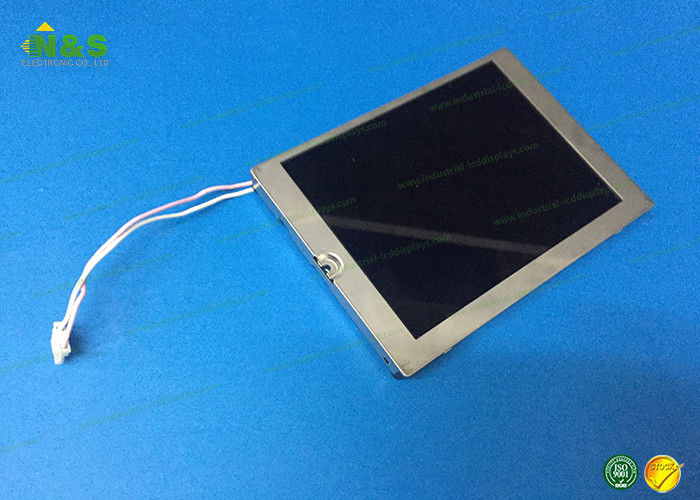

SP14Q002-A1 Picture
