Product Details:
|
| Series: | SP12N002 | Keywords Desc.: | KOE 4.8" 256×64 FSTN-LCD Black/White Mode Transmissive CCFL T6963C CPU |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | FSTN-LCD Graphic Module |
| Application: | Industrial Application | Panel Type: | FSTN-LCD |
| Panel Composition: | LCM | Panel Size: | 4.8" |
| Resolution: | 256×64 | Form Factor: | Flat Rectangle Display |
| Active Area: | 120.29 (W) × 30.05 (H) Mm (A.A) | Viewing Area: | 124.3 (W) × 34.05 (H) Mm (V.A) |
| Outline Dimension: | 160 (W) × 68 (H) Mm | Max. Depth: | 12 Mm |
| Polarizer: | Transmissive | Color Mode: | Black/White Mode |
| Viewing Direction: | 6 O'clock | Colors Amount: | Monochrome |
| Driving Duty: | 1/64 | Controller: | T6963C |
| High Light: | industrial touch screen display,industrial lcd panel |
||
KOE SP12N002 4.8 inch 256×64 FSTN-LCD Black/White mode Transmissive CCFL T6963C CPU 20pins
SP12N002 Main Parameters
| Panel Brand : | HITACHI |
| Panel Model : | SP12N002 |
| Panel Type : | FSTN-LCD , LCM |
| Panel Size : | 4.8 inch |
| Resolution : | 256×64 |
| Display Mode : | STN, Black/White mode, Transmissive |
| Active Area : | 120.29×30.05 mm |
| Outline : | 160×68×12 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 90 cd/m2 (Typ.) |
| Contrast Ratio : | 20:1 (Typ.) |
| Display Colors : | Monochrome |
| Response Time : | 110/160 (Typ.)(Tr/Td) |
| Viewing Angle : | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Frequency : | 75Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | 8-bit parallel , 20 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 4.8 inch |
| Dot Resolution : | 256×64 |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 54 PPI |
| Aspect Ratio : | >3:1 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.470×0.470 mm (H×V) |
| Pixel Pitch : | 0.470×0.470 mm (H×V) |
| Surface : | Hard coating (3H) |
| Active Area : | 120.29×30.05 mm (H×V) |
| Bezel Area : | 124.3×34.05 mm (H×V) |
| Outline Dimension : | 160×68 mm (H×V) |
| Outline Depth : | 7.7/12.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.0) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097TC1 | E Ink | 9.7" | 1200×825 |
| ET047TC1 | E Ink | 4.7" | 540×960 |
| ET040TC1 | E Ink | 4.0" | 480×720 |
| ED043WH1 | E Ink | 4.3" | 480×800 |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |

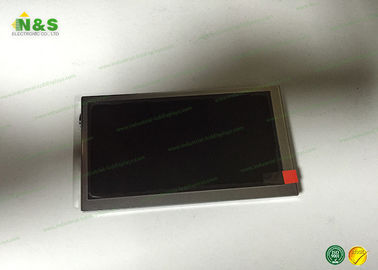

SP12N002 Picture
