Product Details:
|
| Series: | SP14N001 | Keywords Desc.: | KOE 5.1" 240×128 FSTN-LCD Black/White (Negative) Transmissive CCFL T69 |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | FSTN-LCD Graphic Module |
| Application: | Industrial Application | Panel Type: | FSTN-LCD |
| Panel Composition: | LCM | Panel Size: | 5.1" |
| Resolution: | 240×128 | Form Factor: | Flat Rectangle Display |
| Active Area: | 119.98 (W) × 63.98 (H) Mm (A.A) | Viewing Area: | 124.0 (W) × 70.0 (H) Mm (V.A) |
| Outline Dimension: | 159.4 (W) × 101 (H) Mm | Max. Depth: | 11 Mm |
| Polarizer: | Transmissive | Color Mode: | Black/White (Negative) |
| Viewing Direction: | 6 O'clock | Colors Amount: | Monochrome |
| Driving Duty: | 1/128 | Controller: | T6963C |
| High Light: | industrial lcd screen,industrial lcd panel |
||
5.1 inch SP14N001-Z1 240×128 FSTN-LCD Black/White (Negative) Transmissive CCFL T6963C CPU 26pins
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
SP14N001-Z1 Quick Details:
| Panel Brand : | HITACHI |
| Panel Model : | SP14N001-Z1 |
| Panel Type : | FSTN-LCD , LCM |
| Panel Size : | 5.1 inch |
| Resolution : | 240×128 |
| Display Mode : | STN, Black/White (Negative), Transmissive |
| Active Area : | 119.98×63.98 mm |
| Outline : | 159.4×101×11 mm |
| Surface : | Antiglare |
| Brightness : | 150 cd/m2 (Typ.) |
| Contrast Ratio : | 20:1 (Typ.) |
| Display Colors : | Monochrome |
| Response Time : | 120/150 (Typ.)(Tr/Td) |
| Viewing Angle : | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | 8-bit parallel , 26 pins |
| Panel Size : | 5.1 inch |
| Dot Resolution : | 240×128 |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 50 PPI |
| Aspect Ratio : | 17:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.50×0.50 mm (H×V) |
| Pixel Pitch : | 0.50×0.50 mm (H×V) |
| Surface : | Antiglare |
| Active Area : | 119.98×63.98 mm (H×V) |
| Bezel Area : | 124.0×70.0 mm (H×V) |
| Outline Dimension : | 159.4×101 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.0, 2-R1.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| SX19V001-Z2A | KOE | 7.5" | 640×480 |
| LMG5278XUFC-A | KOE | 9.4" | 640×480 |
| LM246X | KOE | 6.9" | 320×256 |
| SX16H003-ZZB | KOE | 6.2" | 640×240 |
| LMG7401PLFC | KOE | 5.1" | 240×128 |
| LMG6411PLGE | KOE | 5.4" | 240×128 |
| LM213XB | KOE | 5.8" | 256×64 |
| LMG7410PLFC | KOE | 5.1" | 240×128 |
| LMG9910ZWCC | KOE | 11.3" | 800×600 |
| LMG9211XUCC | KOE | 9.4" | 640×480 |
| SX21V001-Z3 | KOE | 8.2" | 640×480 |
| LM238XB | KOE | 5.9" | 240×128 |
| SP06Q002-TZA | KOE | 2.5" | 320×240 |

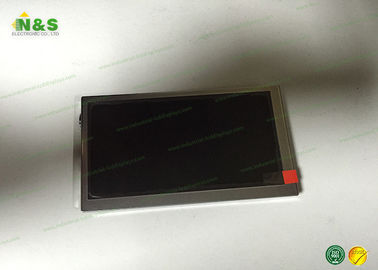

SP14N001-Z1 Picture
