Product Details:
|
| Series: | SP12N01 | Keywords Desc.: | KOE 4.8" 256×64 FSTN-LCD Black/White Mode Transmissive WLED T6963C CPU |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | FSTN-LCD Graphic Module |
| Application: | Industrial Application | Panel Type: | FSTN-LCD |
| Panel Composition: | LCM | Panel Size: | 4.8" |
| Resolution: | 256×64 | Form Factor: | Flat Rectangle Display |
| Active Area: | 120.29 (W) × 30.05 (H) Mm (A.A) | Viewing Area: | 124.3 (W) × 34.05 (H) Mm (V.A) |
| Outline Dimension: | 160 (W) × 68 (H) Mm | Max. Depth: | 12 Mm |
| Polarizer: | Transmissive | Color Mode: | Black/White Mode |
| Viewing Direction: | 6 O'clock | Colors Amount: | Monochrome |
| Driving Duty: | 1/64 | Controller: | T6963C |
| High Light: | industrial touch screen display,industrial lcd screen |
||
4.8 inch SP12N01L6ALCZ 256×64 FSTN-LCD Black/White mode Transmissive WLED T6963C CPU 20pins
SP12N01L6ALCZ Main Parameters
| Panel Brand : | KOE |
| Panel Model : | SP12N01L6ALCZ |
| Panel Type : | FSTN-LCD , LCM |
| Panel Size : | 4.8 inch |
| Resolution : | 256×64 |
| Display Mode : | STN, Black/White mode, Transmissive |
| Active Area : | 120.29×30.05 mm |
| Outline : | 160×68×12 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 90 cd/m2 (Typ.) |
| Contrast Ratio : | 20:1 (Typ.) |
| Display Colors : | Monochrome |
| Response Time : | 110/160 (Typ.)(Tr/Td) |
| Viewing Angle : | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Frequency : | 75Hz |
| Lamp Type : | WLED |
| Signal Interface : | 8-bit parallel , 20 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 4.8 inch |
| Dot Resolution : | 256×64 |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 54 PPI |
| Aspect Ratio : | >3:1 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.470×0.470 mm (H×V) |
| Pixel Pitch : | 0.470×0.470 mm (H×V) |
| Surface : | Hard coating (3H) |
| Active Area : | 120.29×30.05 mm (H×V) |
| Bezel Area : | 124.3×34.05 mm (H×V) |
| Outline Dimension : | 160×68 mm (H×V) |
| Outline Depth : | 7.7/12.0 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.0) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LMG9980ZWCC | KOE | 12.1" | 800×600 |
| SX19V004-ZZA | KOE | 7.5" | 800×600 |
| SX19V010-ZZA | KOE | 7.5" | 640×480 |
| SX19V010 | KOE | 7.5" | 640×480 |
| SX31S009 | KOE | 12.1" | 800×600 |

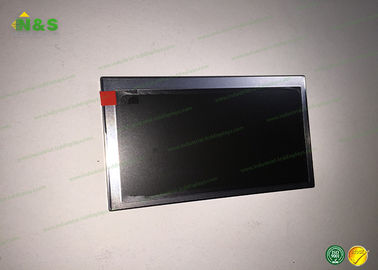

SP12N01L6ALCZ Picture
