Product Details:
|
| Series: | NL2432HC22-40 | Keywords Desc.: | NLT 3.5" TN LCM 240×320 220nits WLED TTL 45pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transflective LCD,Sunlight Readable LCD |
| Application: | Handheld Product,PDA | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 3.5" |
| Resolution: | 240×320 | Aspect Ratio: | 3:4 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Portrait Type |
| Active Area: | 53.64 (W) × 71.52 (H) Mm (A.A) | Outline Dimension: | 63.5 (W) × 85 (H) Mm |
| Max. Depth: | 3.2 Mm | Weight: | 25.0/28.0g (Typ./Max.) |
| LC Family: | TN | Polarizer: | Transflective |
| Brightness: | 220 (Typ.) | Contrast Ratio: | 150:1 (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||
3.5 inch NL2432HC22-40 TN LCM 240×320 220nits WLED TTL 45pins
NL2432HC22-40 Main Parameters
| Panel Brand : | NEC |
| Panel Model : | NL2432HC22-40A |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 240(RGB)×320 , QVGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.64×71.52 mm |
| Outline : | 63.5×85×3.2 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 220 cd/m2 (Typ.) |
| Contrast Ratio : | 150:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle : | 35/35/35/35 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S1P WLED |
| Signal Interface : | CMOS (1 ch, 6-bit) + SPI , 45 pins |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
| Weight : | 25.0/28.0g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 53.64×71.52 mm (H×V) |
| Outline Dimension : | 63.5×85 mm (H×V) |
| Outline Depth : | 3.0±0.2 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| SX19V001-Z2A | KOE | 7.5" | 640×480 |
| LMG5278XUFC-A | KOE | 9.4" | 640×480 |
| LM246X | KOE | 6.9" | 320×256 |
| SX16H003-ZZB | KOE | 6.2" | 640×240 |
| LMG7401PLFC | KOE | 5.1" | 240×128 |
| LMG6411PLGE | KOE | 5.4" | 240×128 |
| LM213XB | KOE | 5.8" | 256×64 |

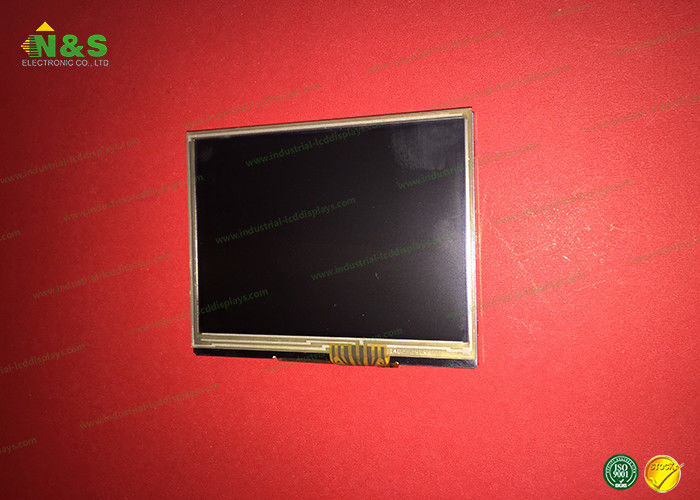

NL2432HC22-40 Picture
