Product Details:
|
| Series: | NL6448BC33-64 | Keywords Desc.: | NLT 10.4" TN LCM 640×480 450nits CCFL TTL 31pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 10.4" |
| Resolution: | 640×480 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 211.2 (W) × 158.4 (H) Mm (A.A) | Viewing Area: | 215.4 (W) × 161.8 (H) Mm (V.A) |
| Outline Dimension: | 243 (W) × 185.1 (H) Mm | Max. Depth: | 11 Mm |
| Weight: | 475/500g (Typ./Max.) | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 450 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||
NL6448BC33-64 10.4 inch TN LCM 640×480 450nits CCFL TTL 31pins
Our Advantages
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
NL6448BC33-64 Main Parameters
| Panel Brand : | NEC |
| Panel Model : | NL6448BC33-64 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 243×185.1×11 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 450 cd/m2 (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | CMOS (1 ch, 6-bit) , 31 pins |
| Input Voltage : | 3.3/5.0V (Typ.) |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 475/500g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 243×185.1 mm (H×V) |
| Outline Depth : | 10.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| ED133UT1 | E Ink | 13.3" | 1600×1200 |
| ES133UT1 | E Ink | 13.3" | 1600×1200 |

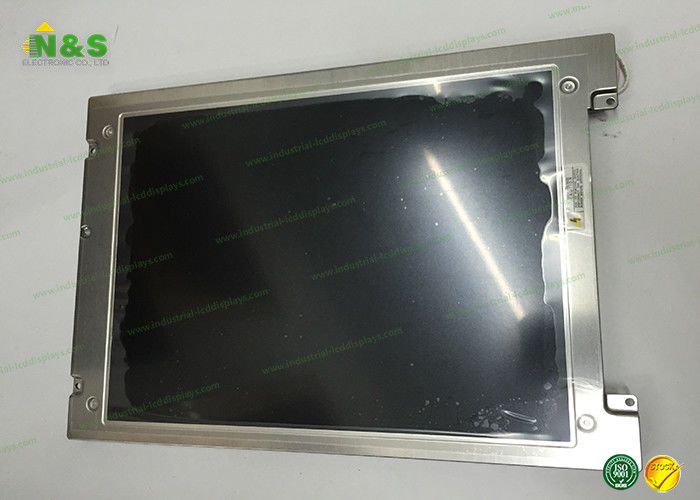

NL6448BC33-64 Picture
