Product Details:
|
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area: | 245.76×184.32 Mm | Outline: | 260.5×204×7.8 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||
LCD Displays PVI PD121XLA 12.1 inch with 245.76×184.32 mm for Industrial Application
PD121XLA General Features
| Panel Brand : | PVI |
| Panel Model : | PD121XLA |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 12.1 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 245.76×184.32 mm |
| Outline : | 260.5×204×7.8 mm |
| Surface : | Antiglare |
| Brightness : | 400 cd/m2 (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4S6P WLED |
| Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
| Panel Size : | 12.1 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 105 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.080×0.240 mm (H×V) |
| Pixel Pitch : | 0.240×0.240 mm (H×V) |
| Weight : | 486±20g |
| Surface : | Antiglare |
| Active Area : | 245.76×184.32 mm (H×V) |
| Bezel Area : | 249.56×188.12 mm (H×V) |
| Outline Dimension : | 260.5×204 mm (H×V) |
| Outline Depth : | 7.5±0.3 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| EK014BS012 | PDI | 1.44" | 128×96 |
| EK014BS011 | PDI | 1.44" | 128×96 |
| EG020BS012 | PDI | 2.0" | 200×96 |
| EG020BS011 | PDI | 2.0" | 200×96 |
| EG020AS013 | PDI | 2.0" | 200×96 |
| EG020AS012 | PDI | 2.0" | 200×96 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

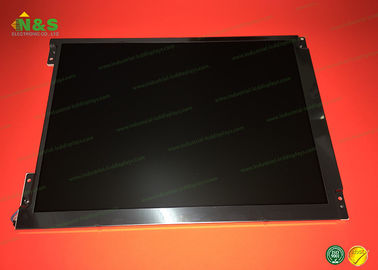

PD121XLA Picture
