Product Details:
|
Resolution: | 1024(RGB)×768 , XGA | Display Mode: | TN, Normally White, Transmissive |
---|---|---|---|
Active Area: | 245.76×184.32 Mm | Outline: | 260.5×204×8.1 Mm |
Surface: | Antiglare | Brightness: | 550 Cd/m² (Typ.) |
High Light: | industrial touch screen display,industrial lcd panel |
12.1 inch PVI PD121XL4 LCD Displays Normally White with 245.76×184.32 mm Active Area
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
PD121XL4 Main Parameters
Panel Brand : | PVI |
Panel Model : | PD121XL4 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 12.1 inch |
Resolution : | 1024(RGB)×768 , XGA |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 245.76×184.32 mm |
Outline : | 260.5×204×8.1 mm |
Surface : | Antiglare |
Brightness : | 550 cd/m2 (Typ.) |
Contrast Ratio : | 600:1 (Typ.) |
Display Colors : | 262K (6-bit) |
Response Time : | 10/20 (Typ.)(Tr/Td) |
Viewing Angle : | 75/75/60/55 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 3S18P WLED |
Signal Interface : | LVDS (1 ch, 6-bit) , 20 pins |
Input Voltage : | 3.3V (Typ.) |
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
E1190CS021 | PDI | 1.9" | 144×128 |
E1260CS021 | PDI | 2.6" | 232×128 |
E1271CS021 | PDI | 2.7" | 264×176 |
E1144CS021 | PDI | 1.44" | 128×96 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Panel Size : | 12.1 inch |
Dot Resolution : | 1024(RGB)×768 (XGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 105 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.080×0.240 mm (H×V) |
Pixel Pitch : | 0.240×0.240 mm (H×V) |
Weight : | 473±20g |
Surface : | Antiglare |
Active Area : | 245.76×184.32 mm (H×V) |
Bezel Area : | 249.56×188.12 mm (H×V) |
Outline Dimension : | 260.5×204 mm (H×V) |
Outline Depth : | 5.6/8.1 (Typ./Max.) mm |
Holes & Brackets : | Without |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day

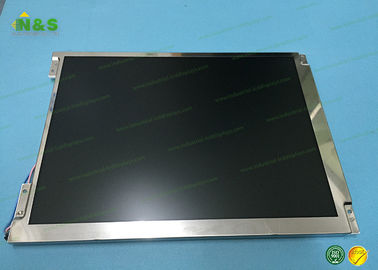

PD121XL4 Picture
