Product Details:
|
| Panel Size: | 5.7 Inch | Resolution: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 115.2×86.4 Mm |
| Outline: | 144×104.6×14.95 Mm | Surface: | Antiglare |
| High Light: | industrial touch screen display,industrial lcd screen |
||
5.7 inch Antiglare PD057VU7 PVI LCD Displays with 115.2×86.4 mm
PD057VU7 Main Parameters
| Panel Brand : | PVI |
| Panel Model : | PD057VU7 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 144×104.6×14.95 mm |
| Surface : | Antiglare |
| Brightness : | 600 cd/m2 (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/50 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S12P WLED |
| Signal Interface : | TTL (1 ch, 6-bit) , 33 pins |
| Input Voltage : | 3.3V (Typ.)(VCC) |
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | 244±10g |
| Surface : | Antiglare |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 117.2×88.4 mm (H×V) |
| Outline Dimension : | 144×104.6 mm (H×V) |
| Outline Depth : | 14.45±0.5 mm |
| Holes & Brackets : | Rear mounting holes (4-Ф2.6) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| EK014BS012 | PDI | 1.44" | 128×96 |
| EK014BS011 | PDI | 1.44" | 128×96 |
| EG020BS012 | PDI | 2.0" | 200×96 |
| EG020BS011 | PDI | 2.0" | 200×96 |
| EG020AS013 | PDI | 2.0" | 200×96 |
| EG020AS012 | PDI | 2.0" | 200×96 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok

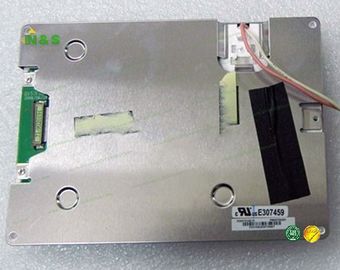

PD057VU7 Picture
