Product Details:
|
| Active Area: | 115.2×86.4 Mm | Outline: | 144×104.8×13.5 Mm |
|---|---|---|---|
| Display Colors: | 262K (6-bit) | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 33 Pins |
| High Light: | industrial touch screen display,industrial lcd panel |
||

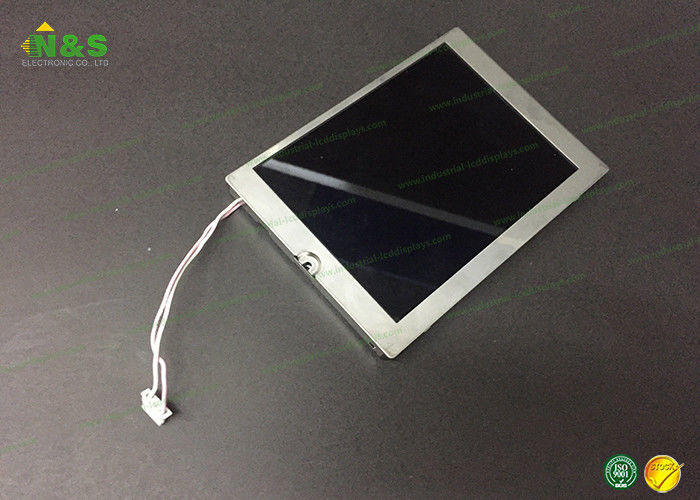

Kyocera TCG057QV1AC-H50 5.7 inch Normally White for Industrial Application panel
TCG057QV1AC-H50 Characteristic
| Panel Brand : | Kyocera |
| Panel Model : | TCG057QV1AC-H50 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 144×104.8×13.5 mm |
| Surface : | Glare (Haze 0%), Antireflection |
| Brightness : | 1000 cd/m² (Typ.) |
| Contrast Ratio : | 450:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/60/60 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 75Hz |
| Lamp Type : | 1 pcs CCFL Optional |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 33 pins |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Kyocera TCG057QV1AC-H50 Mechanical Features
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | 220g |
| Surface : | Glare (Haze 0%), Antireflection |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 119.8×91.0 mm (H×V) |
| Outline Dimension : | 144×104.8 mm (H×V) |
| Outline Depth : | 13.0±0.5 mm |
| Holes & Brackets : | Rear mounting holes (4-Φ2.6) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
