Product Details:
|
| Panel Size: | 7.0 Inch | Panel Type: | LTPS TFT-LCD , LCM |
|---|---|---|---|
| Active Area: | 152.4×91.44 Mm | Contrast Ratio: | 300:1 (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

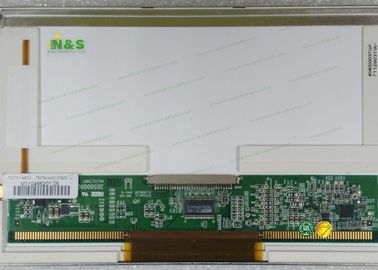

TD070WGEC3 7.0 inch with 152.4×91.44 mm Active Area for Portable DVD player panel
TD070WGEC3 Characteristic
| Panel Brand : | TPO |
| Panel Model : | TD070WGEC3 |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 152.4×91.44 mm |
| Surface : | Antiglare |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 50% |
| Response Time : | 12 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/60/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 7S3P WLED Embedded (LED Driver) |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 60 pins |
| Input Voltage : | 3.3/9.0/12.0/-6.0V (Typ.)(VDD/AVDD/VVDD/VEE) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
TPO TD070WGEC3 Mechanical Features
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 130±5g |
| Surface : | Antiglare |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 155.2×94.24 mm (H×V) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED312TT2 | E Ink | 31.2" | 2560×1440 |
| ES133TE1 | E Ink | 13.3" | 2200×1650 |
| ES133TT2 | E Ink | 13.3" | 2200×1650 |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Contact Person: savvy,ren
Tel: +8613302928193
