Product Details:
|
| Brightness: | 80 Cd/m² (Typ.) | Display Colors: | 262K (6-bit) , CIE1931 36% |
|---|---|---|---|
| Frequency: | 60Hz | Signal Interface: | Parallel RGB (1 Ch, 6-bit) + SPI , 60 Pins |
| High Light: | industrial touch screen display,industrial lcd panel |
||

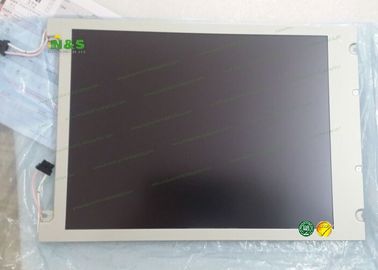

Normally White TD035STED1 3.5 inch with 64.3×87.1×4.9 mm Outline for PDA panel
TD035STED1 Characteristic
| Panel Brand : | Toppoly |
| Panel Model : | TD035STED1 |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 240(RGB)×320 , QVGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.28×71.04 mm |
| Outline : | 64.3×87.1×4.9 mm |
| Brightness : | 80 cd/m² (Typ.) |
| Contrast Ratio : | 100:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 36% |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/60/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S1P WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) + SPI , 60 pins |
| Input Voltage : | 2.8/2.8/5/10/-5.5V (Typ.)(VDD1/VDD2/AVDD/VGH/VVEE) |
TD035STED1 General Features
| Panel Size : | 3.5 inch |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 114 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.074×0.222 mm (H×V) |
| Pixel Pitch : | 0.222×0.222 mm (H×V) |
| Weight : | 47.0g |
| Active Area : | 53.28×71.04 mm (H×V) |
| Outline Dimension : | 64.3×87.1 mm (H×V) |
| Outline Depth : | 4.05/4.9 (Typ./Max.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED312TT2 | E Ink | 31.2" | 2560×1440 |
| ES133TE1 | E Ink | 13.3" | 2200×1650 |
| ES133TT2 | E Ink | 13.3" | 2200×1650 |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
