Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 6.2 Inch |
|---|---|---|---|
| Contrast Ratio: | 500:1 (Typ.) | Input Voltage: | 3.3V (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

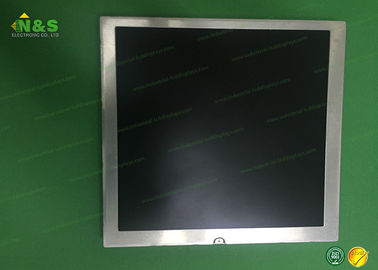

TCG062HV1AE-G02 Kyocera 6.2 inch Normally White with 147.84×55.44 mm Active Area
TCG062HV1AE-G02 Characteristic
| Panel Brand : | Kyocera |
| Panel Model : | TCG062HV1AE-G02 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 6.2 inch |
| Resolution : | 640(RGB)×240 , HVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 147.84×55.44 mm |
| Outline : | 174.2×73.4 mm |
| Surface : | Glare (Haze 0%) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/85/50 (Typ.)(CR≥5) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 33 pins |
| Input Voltage : | 3.3V (Typ.) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
TCG062HV1AE-G02 General Features
| Panel Size : | 6.2 inch |
| Dot Resolution : | 640(RGB)×240 (HVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 109 PPI |
| Aspect Ratio : | 8:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.077×0.231 mm (H×V) |
| Pixel Pitch : | 0.231×0.231 mm (H×V) |
| Weight : | 165g (Typ.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 147.84×55.44 mm (H×V) |
| Bezel Area : | 152.4×60.0 mm (H×V) |
| Outline Dimension : | 174.2×73.4 mm (H×V) |
| Outline Depth : | 12.2 mm |
| Holes & Brackets : | Rear mounting holes (4-Ф2.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AGN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-ACN | Kyocera | 2.8" | 128×64 |
