Product Details:
|
| Panel Size: | 5.7 Inch | Active Area: | 115.2×86.4 Mm |
|---|---|---|---|
| Outline: | 144×104.8×13.5 Mm | Frequency: | 60Hz |
| High Light: | industrial touch screen display,industrial lcd panel |
||

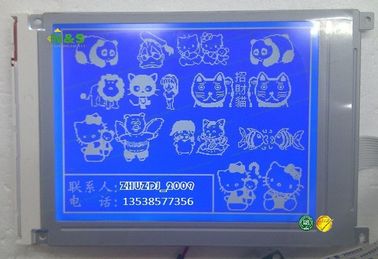

TCG057QVLAC - G00 Flat Panel Lcd Display with 115.2×86.4 mm Active Area for Industrial Application
TCG057QVLAC-G00 Characteristic
| Panel Brand : | Kyocera |
| Panel Model : | TCG057QVLAC-G00 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 144×104.8×13.5 mm |
| Surface : | Glare (Haze 0%) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 450:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3 strings WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 33 pins |
| Input Voltage : | 3.3V (Typ.) |
TCG057QVLAC-G00 General Features
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | 220g (Typ.) |
| Surface : | Glare (Haze 0%) |
| Active Area : | 115.2×86.4 mm (H×V) |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
