Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 18.5 Inch |
|---|---|---|---|
| Resolution: | 1366(RGB)×768 , WXGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 409.8×230.4 Mm | Outline: | 430.4×254.6×11.4 Mm |
| High Light: | industrial touch screen display,industrial lcd panel |
||
BOE HT185WX1-300 LCD Displays 18.5 inch with 430.4×254.6×11.4 mm Outline
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
HT185WX1-300 General Features
| Panel Brand : | BOE |
| Panel Model : | HT185WX1-300 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 18.5 inch |
| Resolution : | 1366(RGB)×768 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 409.8×230.4 mm |
| Outline : | 430.4×254.6×11.4 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/80/80 (Typ.)(CR≥20) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 10S4P WLED |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 18.5 inch |
| Dot Resolution : | 1366(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.100×0.300 mm (H×V) |
| Pixel Pitch : | 0.300×0.300 mm (H×V) |
| Weight : | 1.33Kgs (Typ.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 409.8×230.4 mm (H×V) |
| Bezel Area : | 413.4×234.0 mm (H×V) |
| Outline Dimension : | 430.4×254.6 mm (H×V) |
| Outline Depth : | 11.4 (Max.) mm |
| Holes & Brackets : | Optional (Side mounting holes (4-M3) on left, right bezel) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| BF045WVE-407-1QP0 | BOE | 4.5" | 480×854 |
| BF060SQE-400 | BOE | 6.0" | 540×960 |
| HR236WU3-301 | BOE | 23.6" | 1920×1080 |
| HR236WU3-100 | BOE | 23.6" | 1920×1080 |
| BT050WVAE601 | BOE | 5.0" | 800×480 |
| HR215WU3-200 | BOE | 21.5" | 1920×1080 |
| BF065HDM-500-19P0 | BOE | 6.5" | 720×1280 |
| HT260WX2-100 | BOE | 26.0" | 1366×768 |
| BT040WQME601 | BOE | 4.0" | 240×400 |
| BT030QVMG001 | BOE | 3.0" | 240×320 |
| BT030QVME601 | BOE | 3.0" | 240×320 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

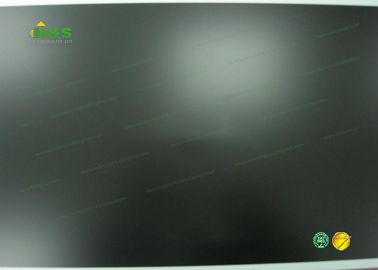

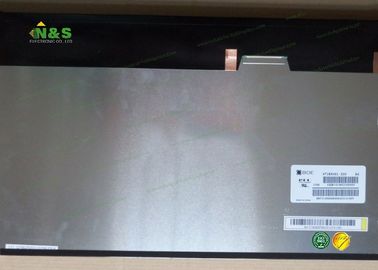

HT185WX1-300 Picture
