Product Details:
|
| Panel Size: | 3.5 Inch | Active Area: | 70.08×52.56 Mm |
|---|---|---|---|
| Outline: | 76.9×63.9×3.46 Mm | Brightness: | 300 Cd/m² (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

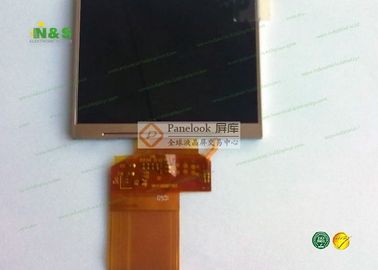

LQ035NC111 ChiHsin 3.5 inch Normally White with 70.08×52.56 mm Active Area
LQ035NC111 Characteristic
| Panel Brand : | ChiHsin |
| Panel Model : | LQ035NC111 1 Compatible model |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 70.08×52.56 mm |
| Outline : | 76.9×63.9×3.46 mm |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 60% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/50/55 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 6S1P WLED Without Driver |
| Signal Interface : | Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Weight : | 30.0g (Typ.) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Bezel Area : | 73.03×55.50 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 3.26±0.2 mm |
| Landscape or Portrait : | Landscape type |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED312TT2 | E Ink | 31.2" | 2560×1440 |
| ES133TE1 | E Ink | 13.3" | 2200×1650 |
| ES133TT2 | E Ink | 13.3" | 2200×1650 |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
