Product Details:
|
| Resolution: | 800×480(RGB) , WVGA | Display Mode: | TN, Normally White, Transmissive |
|---|---|---|---|
| Active Area: | 151.44×90.576 Mm | Outline: | 165×104.6×3.6 Mm |
| Surface: | Antiglare | Brightness: | 350 Cd/m² (Typ.) |
| High Light: | lg lcd display,lg replacement screen |
||
Normally White LB070WV6-TD08 LG LCD Panel 7.0 inch with 151.44×90.576 mm Active Area
LB070WV6-TD08 Product Information
| Panel Brand : | LG Display |
| Panel Model : | LB070WV6-TD08 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 800×480(RGB) , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 151.44×90.576 mm |
| Outline : | 165×104.6×3.6 mm |
| Surface : | Antiglare |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 7S3P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800×480(RGB) (WVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 134 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1893×0.0629 mm (H×V) |
| Pixel Pitch : | 0.1893×0.1887 mm (H×V) |
| Weight : | 107.7/112g (Typ./Max.) |
| Surface : | Antiglare |
| Active Area : | 151.44×90.576 mm (H×V) |
| Bezel Area : | 158.44×93.526 mm (H×V) |
| Outline Dimension : | 165×104.6 mm (H×V) |
| Outline Depth : | 3.3±0.3 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LC150WXD-EL01 | LG Display | 15.0" | 1366×768 |
| LH220Q14-ED02 | LG Display | 2.2" | 240×320 |
| LH300Q01-ED01 | LG Display | 3.0" | 320×240 |
| LH240Q02-ED01 | LG Display | 2.4" | 240×320 |
| LB060X02-RD01 | LG Display | 6.0" | 1024×768 |
| LB115U01-RD01 | LG Display | 11.5" | 1600×1200 |
| LB097WX1-RD01 | LG Display | 9.7" | 1200×825 |
| LB071WS1-RD01 | LG Display | 7.1" | 1024×600 |
| LB060S01-RD02 | LG Display | 6.0" | 800×600 |

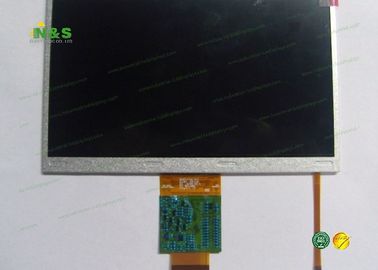

LB070WV6-TD08 Picture
