Product Details:
|
| Panel Size: | 15.0 Inch | Pixel Configuration: | RGB Vertical Stripe |
|---|---|---|---|
| Aspect Ratio: | 4:3 (H:V) | Pixel Pitch: | 0.297×0.297 Mm (H×V) |
| High Light: | auo lcd screen,auo lcd display |
||

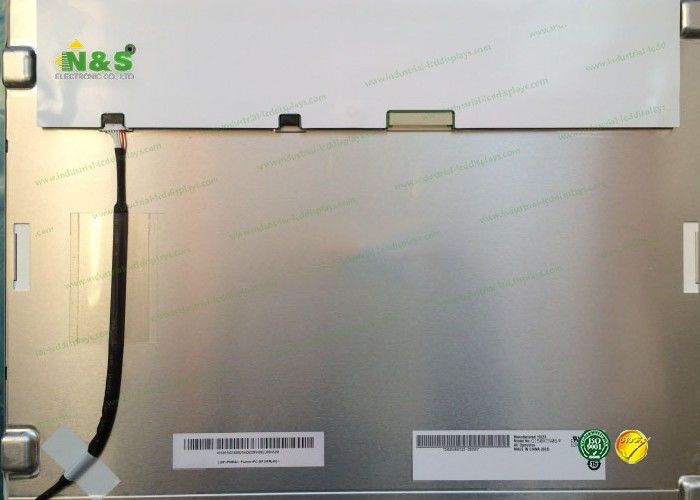

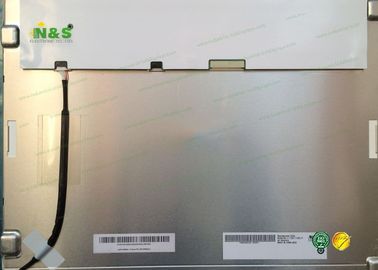

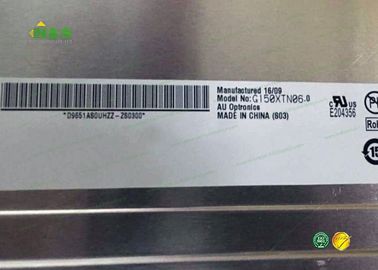

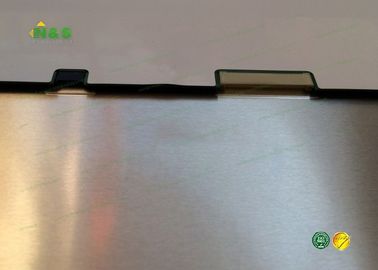

15.0 Inch industrial flat panel display G150XTN06.0 , auo display panel
G150XTN06.0 Characteristic
| Panel Brand : | AUO |
| Panel Model : | G150XTN06.0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.128×228.096 mm |
| Outline : | 326.5×253.5×12.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 450 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60% |
| Response Time : | 5.7/2.3 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/70/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
AUO G150XTN06.0 Mechanical Features
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.00Kgs (Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 304.128×228.096 mm (H×V) |
| Bezel Area : | 307.4×231.3 mm (H×V) |
| Outline Dimension : | 326.5×253.5 mm (H×V) |
| Outline Depth : | 12.0±0.5 mm |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X139BLB01.0 | AUO | 1.39" | 400×400 |
| H381DLN01.0 | AUO | 3.8" | 1080×1200 |
| H497TLB01.4 | AUO | 5.0" | 720×1280 |
| H163QLN01.0 | AUO | 1.63" | 320×320 |
| H139BLN01.2 | AUO | 1.39" | 400×400 |
| H500TLB01.0 | AUO | 5.0" | 720×1280 |
| X546DLB01.0 | AUO | 5.5" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
