Product Details:
|
| Dot Resolution: | 480×272(RGB) (WQVGA) | Pixel Density: | 128 PPI |
|---|---|---|---|
| Dot Pitch: | 0.198×0.066 Mm (H×V) | Weight: | 60.0g (Typ.) |
| High Light: | samsung lcd screen,samsung lcd display panel |
||

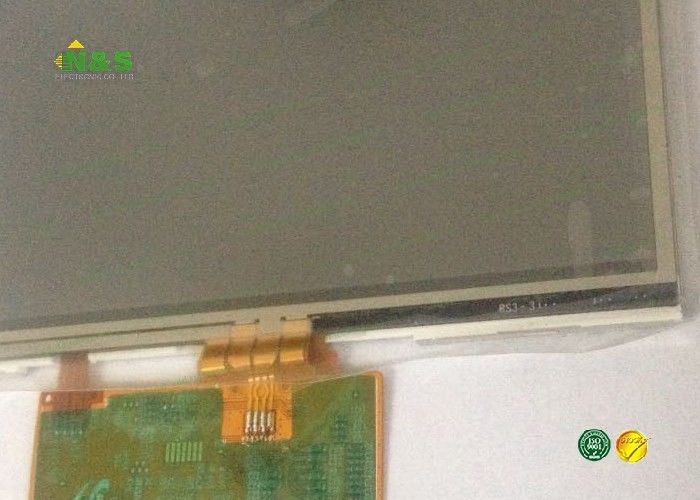

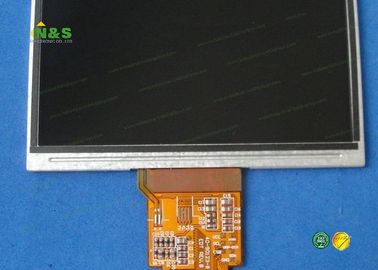

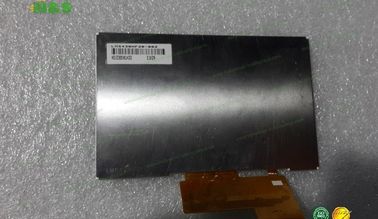

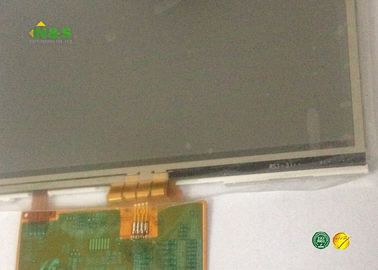

60Hz LMS430HF26 samsung lcd screen replacement 95.04×53.856 mm Active Area
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
LMS430HF26 Characteristic
| Panel Brand : | SAMSUNG |
| Panel Model : | LMS430HF26 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 4.3 inch |
| Resolution : | 480×272(RGB) , WQVGA |
| Display Mode : | VA, Normally Black, Transflective |
| Active Area : | 95.04×53.856 mm |
| Outline : | 105.5×67.2×4.25 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.)(Transmissive) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 17/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 10S1P WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 45 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 4.3 inch |
|---|---|
| Dot Resolution : | 480×272(RGB) (WQVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.198×0.066 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 60.0g (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS465GS47 | Samsung | 4.7" | 720×1280 |
| AMS477GV11 | Samsung | 4.8" | 720×1280 |
| AMS499QP59 | Samsung | 5.0" | 1080×1920 |
| AMS499QP53 | Samsung | 5.0" | 1080×1920 |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
