Product Details:
|
| Panel Size: | 18.5 Inch | Resolution: | 1920(RGBY)×1080 , FHD |
|---|---|---|---|
| Display Mode: | AHVA, Normally Black, Transmissive | Active Area: | 409.8×230.4 Mm |
| Outline: | 430.4×254.6×12.5 Mm | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | auo display panel,auo lcd screen |
||
Normally Black G185HAN01.0 AUO LCD Panel 18.5 inch for Industrial Application
G185HAN01.0 Detailed Product Description
| Panel Brand : | AUO |
| Panel Model : | G185HAN01.0 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 18.5 inch |
| Resolution : | 1920(RGBY)×1080 , FHD |
| Display Mode : | AHVA, Normally Black, Transmissive |
| Active Area : | 409.8×230.4 mm |
| Outline : | 430.4×254.6×12.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , sRGB |
| Response Time : | 10/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 18.5 inch |
| Dot Resolution : | 1920(RGBY)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 1.20Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 409.8×230.4 mm (H×V) |
| Bezel Area : | 410.96×232.0 mm (H×V) |
| Outline Dimension : | 430.4×254.6 mm (H×V) |
| Outline Depth : | 12.0±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| X546DLT01 | AUO | 5.5" | 1080×1920 |
| X163QLN01 | AUO | 1.63" | 320×320 |
| H499TLB01 V0 | AUO | 5.0" | 720×1280 |
| H020HD01 V0 | AUO | 2.0" | 176×220 |
| A020AE01 V0 | AUO | 2.0" | 172×72 |
| A060SE03 V0 | AUO | 6.0" | 600×800 |
| A060XE01 V1 | AUO | 6.0" | 768×1024 |
| A060SE02 V8 | AUO | 6.0" | 800×600 |
| A090XE02 V3 | AUO | 9.0" | 1024×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

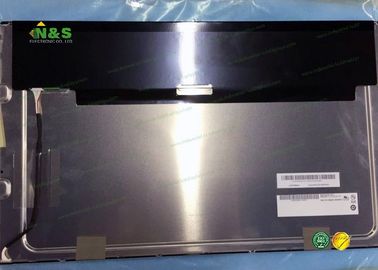

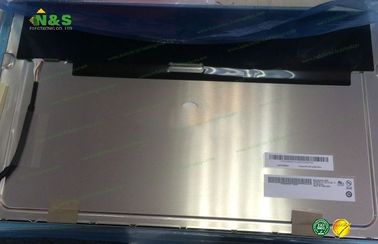

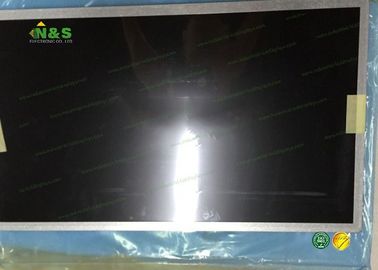

G185HAN01.0 Picture
