Product Details:
|
| Panel Brand: | CMO | Panel Model: | G104X1-L03 |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 , XGA | Display Mode: | Super MVA, Normally Black, Transmissive |
| Active Area: | 210.4×157.8 Mm | Outline: | 238.6×175.8×7.97 Mm |
| High Light: | industrial lcd screen,industrial lcd panel |
||
10.4 Inch CMO LCD Screen G104X1-L03 , anti glare lcd screen industrial grade
G104X1-L03 Characteristic
| Panel Brand : | CMO |
| Panel Model : | G104X1-L03 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | Super MVA, Normally Black, Transmissive |
| Active Area : | 210.4×157.8 mm |
| Outline : | 238.6×175.8×7.97 mm |
| Surface : | Antiglare |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 53% |
| Response Time : | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 123 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) |
| Weight : | 280g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 210.4×157.8 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 238.6×175.8 mm (H×V) |
| Outline Depth : | 6.0/7.97 (Typ./Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Ф2.8) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| ED133UT1 | E Ink | 13.3" | 1600×1200 |
| ES133UT1 | E Ink | 13.3" | 1600×1200 |
| ED060SCQ | E Ink | 6.0" | 600×800 |
| ED097OD2 | E Ink | 9.7" | 1200×825 |
| ED060KG1 | E Ink | 6.0" | 1072×1448 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

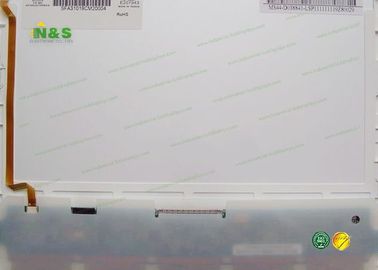

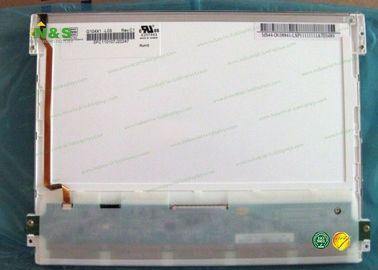

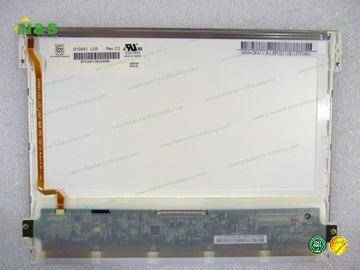

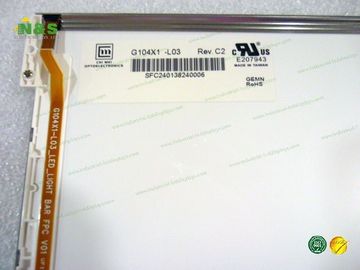

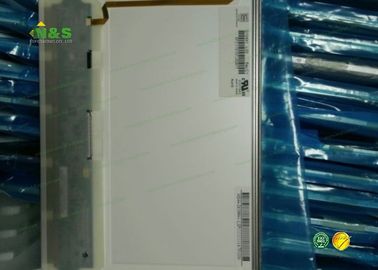

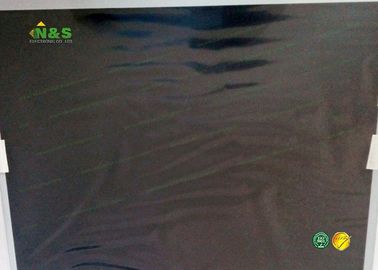

G104X1-L03 Picture
