LMS430HF10 4.3 inch samsung lcd display panel replacement LCM 480×272

LMS430HF10 4.3 inch samsung lcd display panel replacement LCM 480×272

LMS430HF10 4.3 inch samsung lcd display panel replacement LCM 480×272

Product Details:

Place of Origin: KOREA
Brand Name: Samsung
Certification: ISO9001
Model Number: LMS430HF10

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 4.3 Inch
Resolution: 480×272(RGB) , WQVGA Display Mode: AH-IPS, Normally Black, Transmissive
Active Area: 95.04×53.856 Mm Outline: 105.5×67.2×3.1 Mm



LMS430HF10 4.3 inch samsung lcd display panel replacement LCM 480×272



LMS430HF10  Information

Panel Size : 4.3 inch
Dot Resolution : 480×272(RGB) (WQVGA)
Pixel Configuration : RGB Horizontal Stripe
Pixel Density : 128 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.198×0.066 mm (H×V)
Pixel Pitch : 0.198×0.198 mm (H×V)
Weight : 45.0g (Typ.)
Active Area : 95.04×53.856 mm (H×V)
Bezel Area : 96.44×55.236 mm (H×V)
Outline Dimension : 105.5×67.2 mm (H×V)
Outline Depth : 2.9±0.2 mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without



Competitive Advantage:

1. We are a leading vendor & distributor for the LCD panels for more than 6 years.

2. We got the ISO9001 quality management system certification.

3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.

4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.

5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.

6. 1-year warranty is offered.

7. All LCD Panel will be tested before shipment.

8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.



Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing

Picked up by forward and delivered by express services.



Display Mode : PVA, Normally Black, TMR
Brightness : 500 cd/m² (Typ.)
Contrast Ratio : 800 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 17/15 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.330
White Variation : 1.25/1.43 (Typ./Max.)(9 points)
Sunlight Readable : Y



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AMS465GS47 Samsung 4.7" 720×1280
AMS477GV11 Samsung 4.8" 720×1280
AMS499QP59 Samsung 5.0" 1080×1920
AMS499QP53 Samsung 5.0" 1080×1920
AMS499QP07 Samsung 5.0" 1080×1920
AMS499QP01 Samsung 5.0" 1080×1920
AMS568AT01 Samsung 5.7" 1440×2560
AMS840CS04 Samsung 8.4" 1600×2560
AMS520BQ04-0 Samsung 5.2" 1080×1920
AMS309PW01-0 Samsung 3.1" 720×720

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

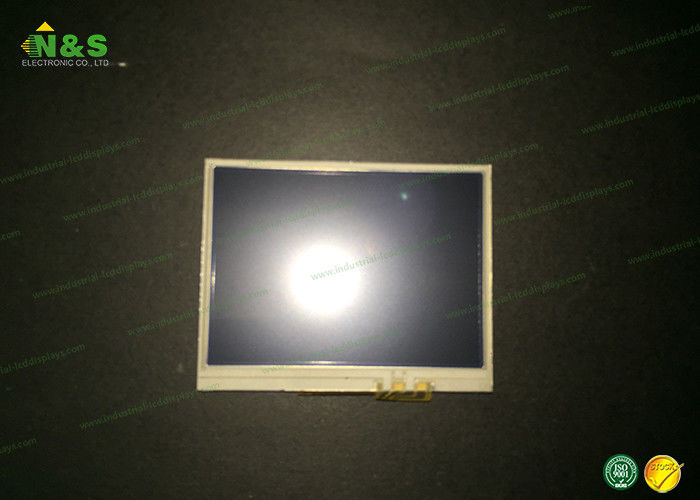

LMS430HF10 Picture



LMS430HF10 4.3 inch samsung lcd display panel replacement LCM 480×272
