Professional LMS430HF13 Samsung LCD Panel for Portable Navigation panel

Professional LMS430HF13 Samsung LCD Panel for Portable Navigation panel

Professional LMS430HF13 Samsung LCD Panel for Portable Navigation panel

Product Details:

Place of Origin: KOREA
Brand Name: Samsung
Certification: ISO9001
Model Number: LMS430HF13

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 4.3 Inch
Resolution: 480×272(RGB) , WQVGA Display Mode: AH-IPS, Normally Black, Transmissive
Active Area: 95.04×53.856 Mm Outline: 105.5×67.2×3.1 Mm



Professional LMS430HF13 Samsung LCD Panel for Portable Navigation panel



LMS430HF13 Specification

Panel Size : 4.3 inch
Dot Resolution : 480×272(RGB) (WQVGA)
Pixel Configuration : RGB Horizontal Stripe
Pixel Density : 128 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.198×0.066 mm (H×V)
Pixel Pitch : 0.198×0.198 mm (H×V)
Weight : 45.0g (Typ.)
Active Area : 95.04×53.856 mm (H×V)
Bezel Area : 96.44×55.236 mm (H×V)
Outline Dimension : 105.5×67.2 mm (H×V)
Outline Depth : 2.9±0.2 mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without



Company Strength:

1>ISO9001 certificated.

2> Competitive Price and Short Lead-time

3> Professional Team with Rich Experiences in LCD Screen International trade.

4> Small MOQ Support & Fast Response to Customers

5> Long Product Life Time

6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.

7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.

8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.



Display Mode : PVA, Normally Black, TMR
Brightness : 500 cd/m² (Typ.)
Contrast Ratio : 800 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 17/15 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.330
White Variation : 1.25/1.43 (Typ./Max.)(9 points)
Sunlight Readable : Y



Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
AMS549HQ02 Samsung 5.5" 720×1280
AMS520BQ12-0 Samsung 5.2" 1080×1920
AMS497DX12-0 Samsung 5.0" 720×1280
AMS163AN01 Samsung 1.63" 320×320
AMS510CV02 Samsung 5.1" 1080×1920
AMS510CV01 Samsung 5.1" 1080×1920
AMS302AK03 Samsung 3.0" 720×480
AMS353FD01-0 Samsung 3.5" 480×800

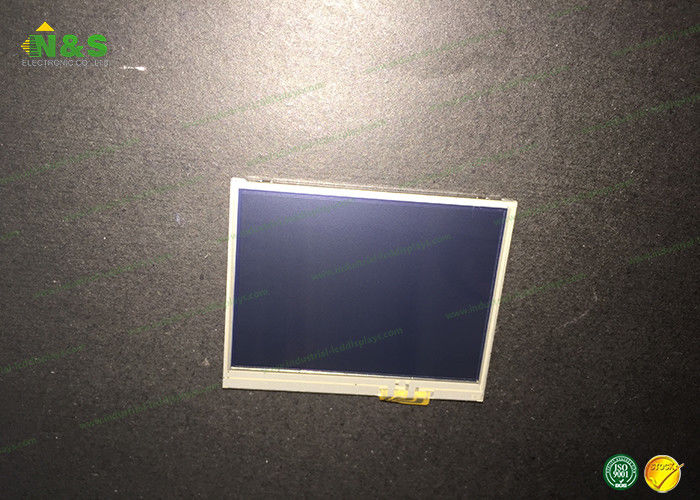

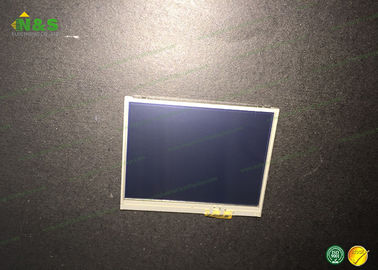

LMS430HF13 Picture



Professional LMS430HF13 Samsung LCD Panel for Portable Navigation panel
