TX13D200VM5BAA Hitachi LCD Panel 5.0 inch for Industrial Application

TX13D200VM5BAA Hitachi LCD Panel 5.0 inch for Industrial Application

TX13D200VM5BAA Hitachi LCD Panel 5.0 inch for Industrial Application

Product Details:

Place of Origin: korea
Brand Name: Hitachi
Certification: ISO9001
Model Number: TX13D200VM5BAA

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 2-3 Working Days after order confirmation
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Brand: Hitachi Panel Model: TX13D200VM5BAA
Panel Type: A-Si TFT-LCD , LCM Panel Size: 5.0 Inch
Resolution: 640(RGB)×480 , VGA Display Mode: TN, Normally White, Transmissive

TX13D200VM5BAA Hitachi LCD Panel 5.0 inch for Industrial Application

TX13D200VM5BAA Specification

Panel Brand :HITACHI
Panel Model :TX13D200VM5BAA
Panel Type :a-Si TFT-LCD , LCM
Panel Size :5.0 inch
Resolution :640(RGB)×480 , VGA
Display Mode :TN, Normally White, Transmissive
Active Area :101.76×76.32 mm
Outline :119.4×89.1×9.8 mm
Surface :Antiglare
Brightness :600 cd/m² (Typ.)
Contrast Ratio :350:1 (Typ.)
Display Colors :262K (6-bit)
Response Time :45 (Max.)(Tr+Td)
Viewing Angle :80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :WLED Embedded (LED Driver)
Signal Interface :CMOS (1 ch, 6-bit) , 40 pins
Input Voltage :3.3V (Typ.)


Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.

Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
HX7308BTJFAHimax0.45"1024×768
HX7027ATGFAHimax0.44"640×480
HX7019ATGFAHimax0.38"640×360

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


Panel Size :5.0 inch
Dot Resolution :640(RGB)×480 (VGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :159 PPI
Aspect Ratio :4:3 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.053×0.159 mm (H×V)
Pixel Pitch :0.159×0.159 mm (H×V)
Weight :110g (Typ.)
Surface :Antiglare
Active Area :101.76×76.32 mm (H×V)
Bezel Area :104.8×79.36 mm (H×V)
Outline Dimension :119.4×89.1 mm (H×V)
Outline Depth :5.8/9.8 (Typ./Max.) mm
Landscape or Portrait :Landscape type
Touch Panel :Without

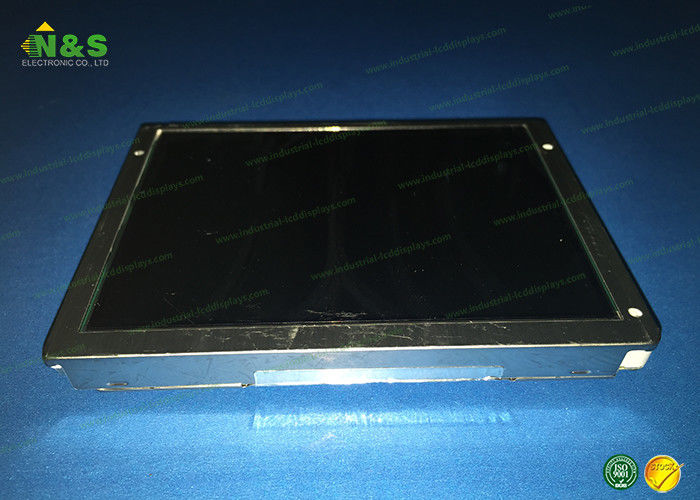

TX13D200VM5BAA Picture

TX13D200VM5BAA Hitachi LCD Panel 5.0 inch for Industrial Application
