Product Details:
|
| Panel Brand: | LG Display | Panel Model: | LM238WR1-SLA1 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 23.8 Inch |
| Resolution: | 3840(RGB)×2160 , UHD | Display Mode: | AH-IPS, Normally Black, Transmissive |
| High Light: | lg display panel,lg lcd display |
||
LM238WR1-SLA1 23.8 inch Normally Black LG LCD Panel LCM 3840×2160 350 1000:1 1.07B GB-r LED LVDS
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH530WX1-SH02 | LG Display | 5.3" | 720×1280 |
| LH500WX2-SH01 | LG Display | 5.0" | 720×1280 |
| LH176J03-SH02 | LG Display | 1.8" | 220×176 |
| LH176J04-TH01 | LG Display | 1.8" | 176×220 |
| LM230WF5-TJC3 | LG Display | 23.0" | 1920×1080 |
| LD470DUJ-SFE1 | LG Display | 47" | 1920×1080 |
| LH350H04-SH01 | LG Display | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LM238WR1-SLA1 Information
| Panel Brand : | LG Display |
| Panel Model : | LM238WR1-SLA1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 23.8 inch |
| Resolution : | 3840(RGB)×2160 , UHD |
| Display Mode : | AH-IPS, Normally Black, Transmissive |
| Active Area : | 527.04×296.46 mm |
| Outline : | 545×323.4×16 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 1.07B (8-bit + Hi-FRC) , Adobe |
| Response Time : | 14 (Typ.)(G to G) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | GB-r LED Without Driver |
| Signal Interface : | LVDS (8 ch, 10-bit) , 174 pins |
| Input Voltage : | 10.0V (Typ.) |
| Panel Size : | 23.8 inch |
| Dot Resolution : | 3840(RGB)×2160 (UHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 185 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.04575×0.13725 mm (H×V) |
| Pixel Pitch : | 0.13725×0.13725 mm (H×V) |
| Weight : | 2.36/2.48Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 527.04×296.46 mm (H×V) |
| Bezel Area : | 530.2×299.6 mm (H×V) |
| Outline Dimension : | 545×323.4 mm (H×V) |
| Outline Depth : | 16.0 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |

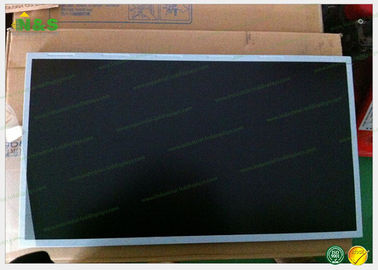

LM238WR1-SLA1 Picture
