Product Details:
|
| Panel Brand: | LG Display | Panel Model: | LB040Q03-TD01 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.0 Inch |
| Resolution: | 320(RGB)×240 , QVGA | Display Mode: | TN, Normally White, Transmissive |
| High Light: | lg display panel,lg replacement screen |
||
LB040Q03-TD01 LG LCD Panel 4.0 inch LCM 320×240 200 300:1 16.7M WLED TTL
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
LB040Q03-TD01 Detail
| Panel Brand : | LG. LCD |
| Panel Model : | LB040Q03-TD01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 4.0 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 81.6×61.2 mm |
| Outline : | 96×75.6 mm |
| Surface : | Antiglare |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 40/40/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 6S1P WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) + SPI , 54 pins |
| Input Voltage : | 3.3V/4.8V (Typ.)(VDD/AVDD) |
Packing & Delivery for our LCD Screen Panel Replacements:
| Panel Size : | 4.0 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 99 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.085×0.255 mm (H×V) |
| Pixel Pitch : | 0.255×0.255 mm (H×V) |
| Weight : | 50/60g (Typ./Max.) |
| Surface : | Antiglare |
| Active Area : | 81.6×61.2 mm (H×V) |
| Bezel Area : | 85.0×64.6 mm (H×V) |
| Outline Dimension : | 96×75.6 mm (H×V) |
| Outline Depth : | 3.49±0.3 mm |
| Holes & Brackets : | No mounting hole |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LH499WX1-SH01 | LG Display | 5.0" | 720×1280 |
| LM195WD1-TJBA | LG Display | 19.5" | 1600×900 |
| LH430WV6-SH01 | LG Display | 4.3" | 480×800 |
| LH500WX2-SH05 | LG Display | 5.0" | 720×1280 |
| LC430EGY-SHM1 | LG Display | 43" | 3840×2160 |

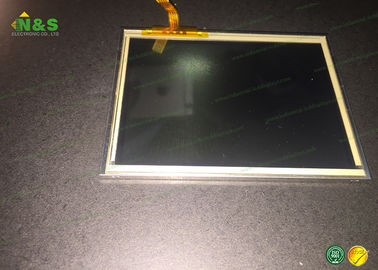

LB040Q03-TD01 Picture
