Product Details:
|
Product Number: | LB084S01-TL01 | Resolution: | 800×600 |
---|---|---|---|
SIZE: | 8.4" | Backlight: | CCFL |
Brightness: | 600 | C/R: | 600:1 |
High Light: | lg display panel,lg lcd display |

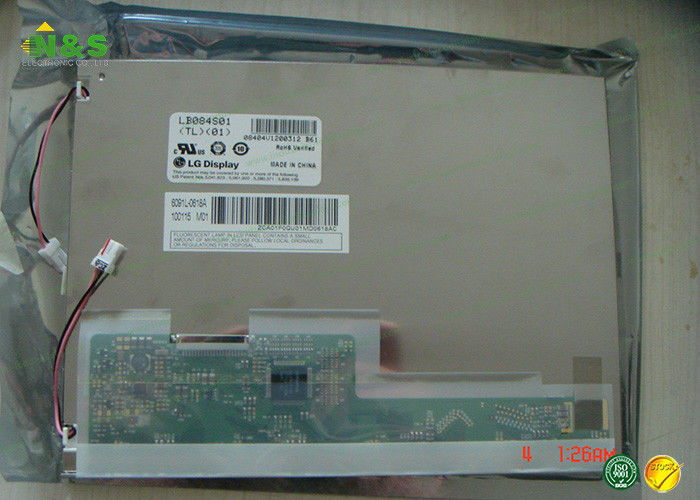

LB084S01-TL01 8.4 INCH original LCD SCREEN for industrial application
Panel Brand : LG. LCD
Panel Model : LB084S01-TL01
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 8.4 inch
Resolution : 800(RGB)×600 , SVGA
Active Area : 170.4×127.8 mm
Outline : 189.5×148.6×9.4 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 600 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 45%
Response Time : 7/18 (Typ.)(Tr/Td)
Viewing Angle : 75/75/70/50 (Typ.)(CR≥10) (L/R/U/D)
Panel Brand : | LG |
---|---|
Panel Model : | LB084S01-TL01 |
Model Alias : | LB084S01 (TL)(01) |
Panel Type : | a-Si TFT-LCD , LCM |
Application : | |
Operating Temperature : | -10 ~ 70 °C |
Storage Temperature : | -20 ~ 80 °C |
RoHS : | ROHS |
Specific Feature : |
|
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
