Product Details:
|
| Panel Size :: | 6.5 Inch | Resolution :: | 800(RGB)×480 , WVGA |
|---|---|---|---|
| Active Area :: | 144×79.2 Mm | Outline :: | 157.4×89.7×12.6 Mm |
| Surface :: | Antiglare (Haze 44%) | Brightness :: | 500 Cd/m² (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

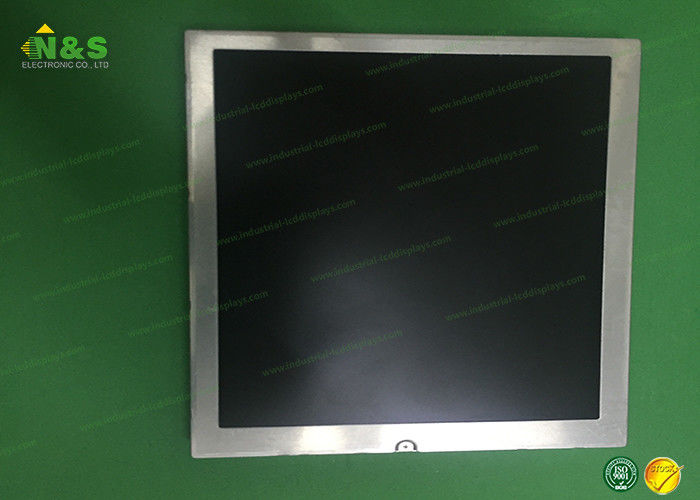

TOSHIBALTA065B1D4F TOSHIBA 6.5 inch LCM 800×480 CCFL TTL
TA065B1D4F DETAIL
| Panel Size : | 6.5 inch |
|---|---|
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 144 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.060×0.165 mm (H×V) |
| Pixel Pitch : | 0.180×0.165 mm (H×V) |
| Weight : | 154.0g (Typ.) |
| Surface : | Antiglare (Haze 44%) |
| Active Area : | 144×79.2 mm (H×V) |
| Bezel Area : | 146.0×81.2 mm (H×V) |
| Outline Dimension : | 157.4×89.7 mm (H×V) |
| Outline Depth : | 8.0/12.6 (Typ./Max.) mm |
| Holes & Brackets : | Rear mounting holes Pole (4-Φ2.1) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTM06C381 | TOSHIBA | 5.8" | 800×480 |
| LTM04C387S | TOSHIBA | 4.0" | 640×480 |
| LTM04C380S | TOSHIBA | 4.0" | 640×480 |
| LTM026DF6 | TOSHIBA | 2.6" | 240×400 |
| LTM025D88 | TOSHIBA | 2.5" | 240×345 |
| LTM024D030* | TOSHIBA | 2.4" | 240×320 |
| LTA070B0C1A | TOSHIBA | 7.0" | 480×234 |
| LTA070B070F | TOSHIBA | 7.0" | 800×480 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
TA065B1D4F DETAIL
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 40/80 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| Sunlight Readable : |
N |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
TA065B1D4F DETAIL
| Vertical Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
