Product Details:
|
Panel Size :: | 15.6 Inch | Resolution :: | 1366(RGB)×768 , WXGA |
---|---|---|---|
Active Area :: | 344.232×193.536 Mm | Outline :: | 363.8×215.9×14.8 Mm |
Surface :: | Antiglare, Hard Coating (3H) | Brightness :: | 250 Cd/m² (Typ.) |
High Light: | auo lcd screen,auo lcd display |

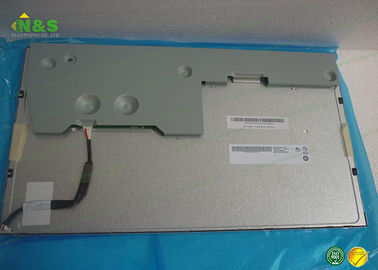

15.6 inch M156XW01 V0 AUO LCM 1366×768 with 344.232×193.536 mm Active Area
M156XW01 V0 Information
Panel Size : | 15.6 inch |
Dot Resolution : | 1366(RGB)×768 (WXGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 100 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.084×0.252 mm (H×V) |
Pixel Pitch : | 0.252×0.252 mm (H×V) |
Weight : | 1.30Kgs (Typ.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 344.232×193.536 mm (H×V) |
Bezel Area : | 347.5×196.8 mm (H×V) |
Outline Dimension : | 363.8×215.9 mm (H×V) |
Outline Depth : | 14.3±0.5 mm |
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 250 cd/m² (Typ.) |
Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M (6-bit + Hi-FRC) |
Color Gamut : | 65% NTSC (CIE1931) |
Response Time : | 6/2 (Typ.)(Tr+Td) |
Viewing Angle : | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.313; Wy:0.329 |
White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
Sunlight Readable : | N |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
Here comes our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
T500QVN03.3 CELL | AUO | 50" | 3840×2160 |
T500QVN03.0 CELL | AUO | 50" | 3840×2160 |
H497DAN02.1 | AUO | 5.0" | 1080×1920 |
H546DAN07.3 | AUO | 5.5" | 1080×1920 |
M270HVN02.3 CELL | AUO | 27.0" | 1920×1080 |
M270HVN02.2 CELL | AUO | 27.0" | 1920×1080 |
M270HVN02.1 CELL | AUO | 27.0" | 1920×1080 |
M270DTN01.0 CELL | AUO | 27.0" | 2560×1440 |
T320HVN05.7 CELL | AUO | 31.5" | 1920×1080 |
T320HVN05.4 CELL | AUO | 31.5" | 1920×1080 |
