Product Details:
|
| Panel Size: | 12.1 Inch | Resolution: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins |
| High Light: | industrial touch screen display,industrial lcd screen |
||
| Panel Size : | 12.1 inch | |
| Dot Resolution : | 1024(RGB)×768 (XGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 105 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.080×0.240 mm (H×V) | |
| Pixel Pitch : | 0.240×0.240 mm (H×V) | |
| Weight : |
| |
| Surface : | Antiglare | |
| Active Area : | 245.76×184.32 mm (H×V) | |
| Bezel Area : | 250.4×188.9 mm (H×V) | |
| Outline Dimension : | 261×199 mm (H×V) | |
| Outline Depth : | 5.5 (Max.) mm | |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without | |
| |
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Packing & Delivery for our LCD Screen Panel Replacements:
| Display Mode : |
| |
| Brightness : | 150 cd/m² (Typ.) | |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K (6-bit) | |
| Response Time : | 32/13 (Typ.)(Tr/Td) | |
| Viewing Angle : | 40/40/10/30 (Min.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | 6 o'clock | |
| White color Chromaticity : |
| |
| White Variation : | 1.45 (Max.)(5 points) | |
| Sunlight Readable : | N | |
| |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LM-CA53-22NAZ | SANYO | 9.4" | 640×480 |
| LM-DA53-22NTW | SANYO | 8.0" | 640×480 |
| LCM-5483-24NHK | SANYO | 8.5" | 640×480 |
| LM-KE55-33NTK | SANYO | 9.4" | 640×480 |
| LM-GD53-22NTZ | SANYO | 11.3" | 1024×768 |
| LM-GD53-22NAZ | SANYO | 13.3" | 1024×768 |

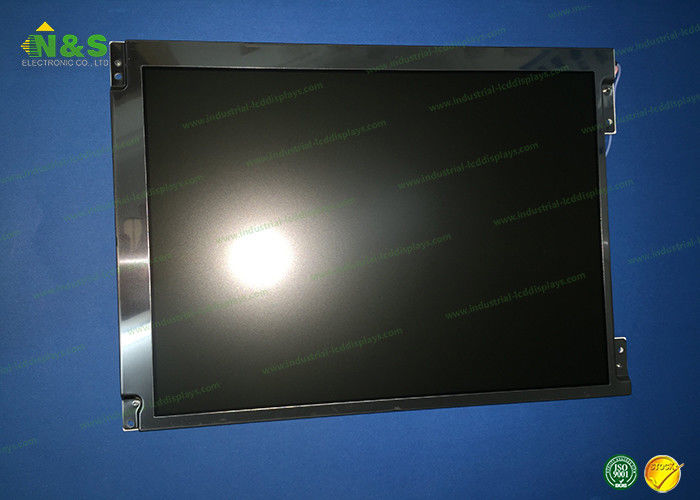

TM121XG-02L02 Picture
