Product Details:
|
| Panel Size: | 6.4 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | TTL (1 Ch, 6-bit) , 30 Pins |
| High Light: | lg lcd display,lg replacement screen |
||
| Panel Size : | 6.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 124 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.068×0.204 mm (H×V) |
| Pixel Pitch : | 0.204×0.204 mm (H×V) |
| Weight : | 175/185g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 130.56×97.92 mm (H×V) |
| Bezel Area : | 133.8×101.1 mm (H×V) |
| Outline Dimension : | 145.5×111.5 mm (H×V) |
| Outline Depth : | 6.7±0.3 mm |
| Holes & Brackets : | Side mounting holes (4-M2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH350H04-SH01 | LG Display | 3.5" | 320×480 |
| LH156J01-TH01 | LG Display | 1.6" | 160×96 |
| LC470EUJ-FFK1 | LG Display | 47" | 1920×1080 |
| LC500DUJ-FFE1 | LG Display | 50" | 1920×1080 |
| LM215WF4-TJC1 | LG Display | 21.5" | 1920×1080 |
| LM230WF3-SJD1 | LG Display | 23.0" | 1920×1080 |
| LM230WF5-TJL3 | LG Display | 23.0" | 1920×1080 |
| LM185WH2-TJBC | LG Display | 18.5" | 1366×768 |
| LC550DUJ-SEE1 | LG Display | 55" | 1920×1080 |
| LC470EUJ-SFK2 | LG Display | 47" | 1920×1080 |
| LC370EXJ-FEE1 | LG Display | 36.5" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Display Color : | 262K (6-bit) |
| Response Time : | 15/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable : | N |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok

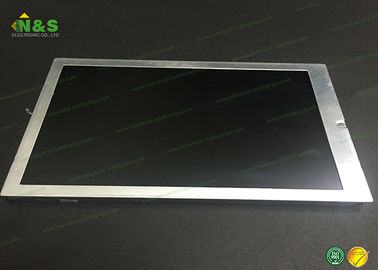

LB064V02-B1 Picture
