Product Details:
|
Panel Size: | 5.0 Inch | Resolution: | 480(RGB)×800 , WVGA |
---|---|---|---|
Display Mode: | TN, Normally White, Transmissive | Signal Interface: | MIPI (2 Data Lanes) , 30 Pins |
High Light: | lg display panel,lg lcd display |
Panel Size : | 5.0 inch |
Dot Resolution : | 480(RGB)×272 (WQVGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 110 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0769×0.229 mm (H×V) |
Pixel Pitch : | 0.2307×0.229 mm (H×V) |
Weight : | 90g (Typ.) |
Surface : | Antiglare |
Active Area : | 110.736×62.288 mm (H×V) |
Bezel Area : | 113.8×65.3 mm (H×V) |
Outline Dimension : | 124×77.2 mm (H×V) |
Outline Depth : | 4.5/6.3 (Typ./Max.) mm |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Display Mode : | TN, Normally White, Transmissive |
Brightness : | 350 cd/m² (Typ.) |
Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
Display Color : | 16.7M (8-bit) |
Color Gamut : | 45% NTSC (CIE1931) |
Response Time : | 25 (Typ.)(Tr+Td) |
Viewing Angle : | 65/65/60/50 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction : | 6 o'clock |
White color Chromaticity : | Wx:0.320; Wy:0.343 |
White Variation : | 1.20/1.40 (Typ./Max.)(9 points) |
Sunlight Readable : | N |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LH260Q32-SH03 | LG Display | 2.6" | 240×320 |
LH275WQ2-SH01 | LG Display | 2.8" | 240×400 |
LH280Q33-SH03 | LG Display | 2.8" | 240×400 |
LH280Q33-SH02 | LG Display | 2.8" | 240×400 |
LH220Q34-TH02 | LG Display | 2.2" | 240×320 |
LH280Q33-SH01 | LG Display | 2.8" | 240×400 |
LH219WQ1-FH01 | LG Display | 2.2" | 240×376 |
LH300H01-SH01 | LG Display | 3.0" | 320×480 |
LC550DUJ-SGE1 | LG Display | 55" | 1920×1080 |
LT070W02-TMC4 | LG Display | 7.0" | 480×234 |
LB070WV4-TJ01 | LG Display | 7.0" | 800×480 |
LC320DXJ-SFE1 | LG Display | 31.5" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Service
1. Small quantity also can be provided.
2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise
5. Sourcing line for different hard disks for different brands.

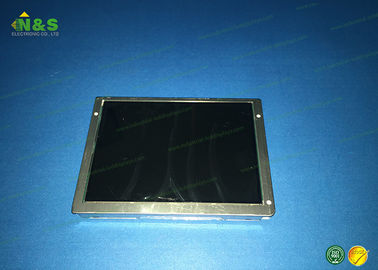

LB050WV1-SD01 Picture
