Product Details:
|
| Panel Size: | 3.5 Inch | Resolution: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | Digital RGB (8/18/24-bit) + SPI , 60 Pins |
| High Light: | lg lcd display,lg replacement screen |
||
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Weight : | 35.0g (Typ.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Bezel Area : | 72.48×55.26 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 3.15±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 370 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M () |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.20/1.40 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
Packing & Delivery for our LCD Screen Panel Replacements:
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH250Q01-TH03 | LG Display | 2.5" | 320×240 |
| LH320H02-SH03 | LG Display | 3.2" | 320×480 |
| LC550EUJ-SER1 | LG Display | 55" | 1920×1080 |
| LC470EUJ-SER1 | LG Display | 47" | 1920×1080 |
| LH600WF3-SH01 | LG Display | 6.0" | 1080×1920 |
| LC470DUJ-SGE1 | LG Display | 47" | 1920×1080 |
| LM230WF5-TJF1 | LG Display | 23.0" | 1920×1080 |
| LC420DUJ-FFE1 | LG Display | 42" | 1920×1080 |
| LH530WX1-SH02 | LG Display | 5.3" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

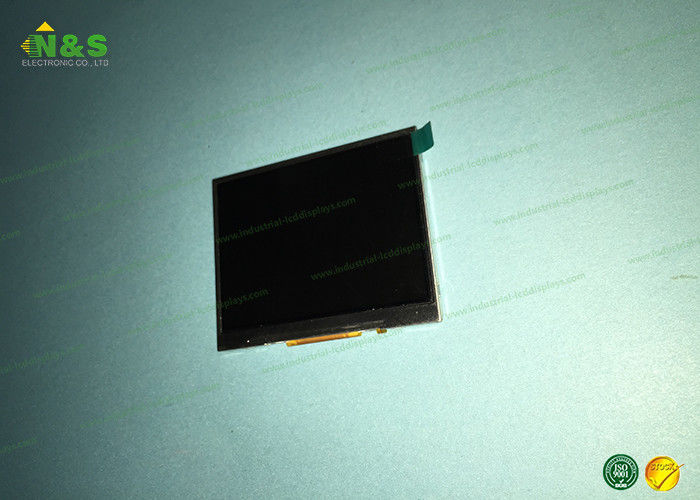

LB035Q04-TD08 Picture
