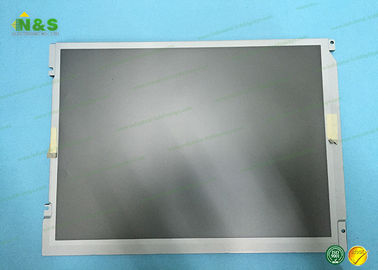

Product Details:
|
| Panel Size: | 13.3 Inch | Resolution: | 1024(RGB)×768 , XGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins |
| High Light: | industrial touch screen display,industrial lcd panel |
||
| Panel Size : | 13.3 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 465g |
| Surface : | Antiglare |
| Active Area : | 270.336×202.752 mm (H×V) |
| Bezel Area : | 273.6×206.0 mm (H×V) |
| Outline Dimension : | 284×215.6 mm (H×V) |
| Outline Depth : | 6.8 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 480 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 20/5 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/25/45 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.315; Wy:0.330 |
| White Variation : | 1.60 (Max.)(5 points) |
| Sunlight Readable : | N |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| EMA-100303-01 | eMagin | 0.62" | 852×600 |
| EMA-100301-01 | eMagin | 0.62" | 852×600 |
| EMA-100302-01 | eMagin | 0.62" | 852×600 |
| EMA-100504 | eMagin | 0.77" | 1280×1024 |
| EMA-100503 | eMagin | 0.77" | 1280×1024 |
| EMA-100502 | eMagin | 0.77" | 1280×1024 |
| EMA-100600-01 | eMagin | 0.47" | 640×480 |
| EMA-100601-01 | eMagin | 0.47" | 640×480 |
| EMA-100821 | eMagin | 0.86" | 1920×1200 |
L5S30348P01 Picture
