Product Details:
|
| Panel Size: | 20.8 Inch | Resolution: | 2048(LCR)×1536 , QXGA |
|---|---|---|---|
| Display Mode: | DD-IPS, Normally Black, Transmissive | Signal Interface: | LVDS (4 Ch, 8-bit) , 70 Pins |
| High Light: | industrial lcd screen,industrial lcd panel |
||
|
20.8 inch | |
| Dot Resolution : | 2048(LCR)×1536 (QXGA) | |
| Pixel Configuration : | LCR Vertical Stripe | |
| Pixel Density : | 122 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.069×0.207 mm (H×V) | |
| Pixel Pitch : | 0.207×0.207 mm (H×V) | |
| Weight : | 2.30Kgs (Typ.) | |
| Surface : |
|
|
| Active Area : | 423.9×318 mm (H×V) | |
| Bezel Area : | 427.9×322.0 mm (H×V) | |
| Outline Dimension : | 457×350 mm (H×V) | |
| Outline Depth : | 45.0 (Typ.) mm | |
| Holes & Brackets : | Side mounting holes (8-M3) | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
| Display Mode : |
|
|
| Brightness : | 1000 cd/m² (Typ.) | |
| Contrast Ratio : | 900 : 1 (Typ.) (Transmissive) | |
| Display Color : | Grayscale (8-bit) | |
| Response Time : | 25/25 (Typ.)(Tr/Td) | |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : | Wx:0.250; Wy:0.305 | |
| Sunlight Readable : | Y |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C043SWN1-2 | IVO | 4.3" | 480×800 |
| C039SWN1-3 | IVO | 4.0" | 320×480 |
| C090SWT-0 | IVO | 9.0" | 1024×600 |
| C060SWY2-1 | IVO | 6.0" | 480×854 |
| C070SWT8-0 | IVO | 7.0" | 1024×600 |
| C017SN81-1 | IVO | 1.8" | 128×160 |
| C116NWR4 | IVO | 11.6" | 1366×768 |
| C101NWN8-0 | IVO | 10.1" | 1366×768 |
| C080AWP2 R0 | IVO | 8.0" | 800×480 |
| F080AWN1-01 | IVO | 8.0" | 800×480 |
| C070SWP2 | IVO | 7.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

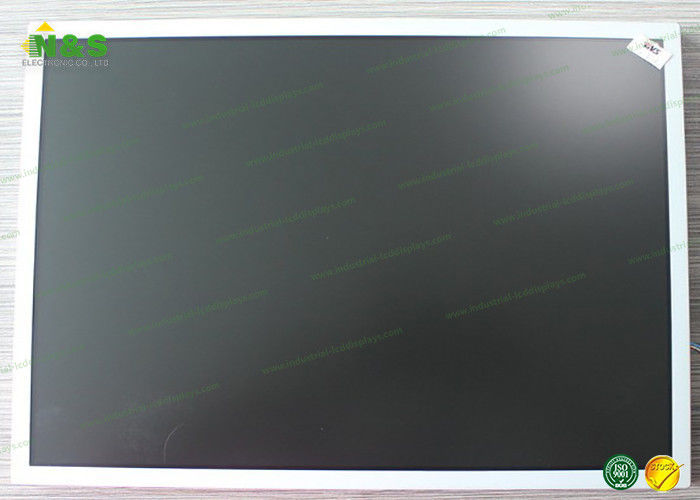

ITQX21B Picture
Contact Person: savvy,ren
Tel: +8613302928193
