Product Details:
|
| Panel Size :: | 10.1 Inch | Resolution :: | 1280(RGB)×800 , WXGA |
|---|---|---|---|
| Active Area :: | 216.96×135.6 Mm | Outline :: | 229.46×149.1×4.56 Mm |
| High Light: | industrial touch screen display,industrial lcd panel |
||

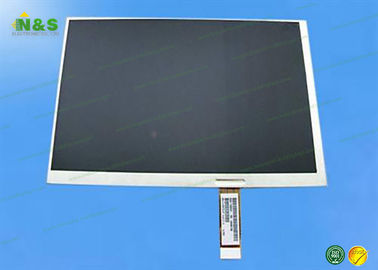

M101NWWB R0 IVO with 229.46×149.1×4.56 mm Outline 10.1 inch
Packing & Delivery for our LCD Screen Panel Replacements:
M101NWWB R0 Information
| Panel Size : | 10.1 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 149 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch : | 0.1695×0.1695 mm (H×V) |
| Surface : | Glare (Haze 0%), Hard coating |
| Active Area : | 216.96×135.6 mm (H×V) |
| Outline Dimension : | 229.46×149.1 mm (H×V) |
| Outline Depth : | 2.5/4.56 (Typ./Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | IPS, Normally Black, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.301; Wy:0.341 |
| White Variation : | 1.33/1.43 (Typ./Max.)(13 points) |
| Sunlight Readable : | N |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Shape : | Array |
| Lamp Voltage : | 9.0V (Typ.) |
| Lamp Current : | 220mA (Typ.) |
| Lamps Power Consumption : | 1.9/2.5W (Typ./Max.) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | No |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C116NWR5-0 | IVO | 11.6" | 1366×768 |
| C024SN21-1 | IVO | 2.4" | 240×320 |
| C055SWF5-0 | IVO | 5.5" | 1080×1920 |
| C050SWA6-3 | IVO | 5.0" | 720×1280 |
| C050SWYG-0 | IVO | 5.0" | 480×854 |
| C050SWYD-2 | IVO | 5.0" | 480×854 |
| C054SWN1-2 | IVO | 5.4" | 540×960 |
