Product Details:
|
| Panel Size :: | 3.5 Inch | Resolution :: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Active Area :: | 70.08×52.56 Mm | Brightness :: | 350 Cd/m² (Typ.) |
| Contrast Ratio :: | 500 : 1 (Typ.) | Display Colors :: | 16.7M (8-bit) |
| High Light: | samsung lcd screen,samsung lcd display panel |
||

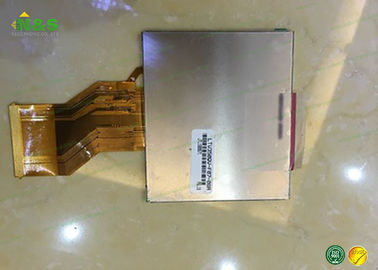

LTV350QV - F07 320×240 samsung lcd panel replacement 350 500 / 1 70.08×52.56 mm Active Area
Our Advantages
LTV350QV-F07 Information
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Weight : | 43/48g (Typ./Max.) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Bezel Area : | 72.88×55.36 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 3.15±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | PVA, Normally Black, TMR |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 4:30 o'clock |
| White color Chromaticity : | Wx:0.320; Wy:0.350 |
| Sunlight Readable : | Y |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 6S1P |
| Lamp Shape : | 1 string |
| Lamp Current : | 20mA (Typ.) |
| Lamps Power Consumption : | 400mW (Typ.) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | No |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS499QP59 | Samsung | 5.0" | 1080×1920 |
| AMS499QP53 | Samsung | 5.0" | 1080×1920 |
| AMS499QP07 | Samsung | 5.0" | 1080×1920 |
| AMS499QP01 | Samsung | 5.0" | 1080×1920 |
| AMS568AT01 | Samsung | 5.7" | 1440×2560 |
| AMS840CS04 | Samsung | 8.4" | 1600×2560 |
| AMS520BQ04-0 | Samsung | 5.2" | 1080×1920 |
| AMS309PW01-0 | Samsung | 3.1" | 720×720 |
| AMS465GS45 | Samsung | 4.7" | 720×1280 |
