Product Details:
|
| Panel Size :: | 3.5 Inch | Resolution :: | 320(RGB)×240 , QVGA |
|---|---|---|---|
| Active Area :: | 70.08×52.56 Mm | Outline :: | 76.9×63.9×3.35 Mm |
| Brightness :: | 250 Cd/m² (Typ.) | Contrast Ratio :: | 300 : 1 (Typ.) |
| Display Colors :: | 16.7M (8-bit) | Response Time :: | 25 (Typ.)(Tr+Td) |
| High Light: | samsung lcd screen,samsung lcd display panel |
||

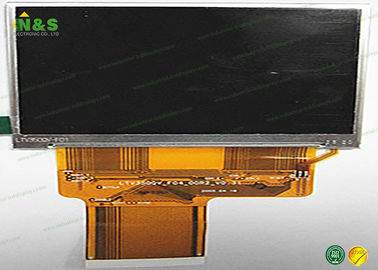

LTV350QV - F04 70.08×52.56 mm samsung lcd screen 3.5 inch LCM 320×240 16.7M WLED TTL
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
LTV350QV-F04 Information
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Weight : | 32/37g (Typ./Max.) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Bezel Area : | 72.88×55.36 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 3.15±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, TMR |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/60/50/55 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.320; Wy:0.350 |
| Sunlight Readable : | Y |
| Lamp Position : | Edge light type |
| Lamp Type : | WLED |
| Lamp Amount : | 6S1P |
| Lamp Shape : | 1 string |
| Lamp Current : | 20mA (Typ.) |
| Lamps Power Consumption : | 400mW (Typ.) |
| Interface Type : | Included in panel signal interface |
| Lamp Driver Board : | No |
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SDC 1.63 320×320 | Samsung | 1.63" | 320×320 |
| AMS499QP42-0 | Samsung | 5.0" | 1080×1920 |
| AMS529BY01 | Samsung | 5.3" | 1080×1920 |
| AMS309PW03-0 | Samsung | 3.1" | 720×720 |
| AMS497QH02 | Samsung | 5.0" | 720×1280 |
| AMS497QH05 | Samsung | 5.0" | 720×1280 |
| AMS465GS52 | Samsung | 4.7" | 720×1280 |
| AMS465GS51 | Samsung | 4.7" | 720×1280 |
| AMS465GS47 | Samsung | 4.7" | 720×1280 |
| AMS477GV11 | Samsung | 4.8" | 720×1280 |
