Product Details:
|
| Panel Size :: | 5.0 Inch | Resolution :: | 480(RGB)×640 , VGA |
|---|---|---|---|
| Active Area :: | 75.6×100.8 Mm | Outline :: | 83.84×113.2×4.8 Mm |
| Brightness :: | 200 Cd/m² (Typ.) | Display Colors :: | 262K (6-bit) , CIE1931 40% |
| High Light: | samsung lcd screen,samsung lcd panel replacement |
||

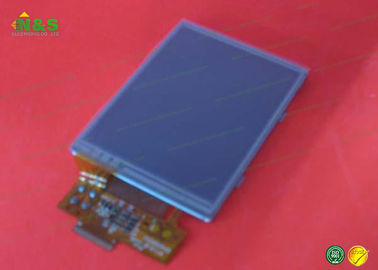

5.0 Inch LTP500GV-F01 Samsung LCD Panel 480×640 with 75.6×100.8 mm Active Area
LTP500GV-F01 Information
| Panel Size : | 5.0 inch |
|---|---|
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 161 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0525×0.1575 mm (H×V) |
| Pixel Pitch : | 0.1575×0.1575 mm (H×V) |
| Weight : | 85/90g (Typ./Max.) |
| Active Area : | 75.6×100.8 mm (H×V) |
| Outline Dimension : | 83.84×113.2 mm (H×V) |
| Outline Depth : | 4.5±0.3 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
LTP500GV-F01 Information
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 250 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 40% NTSC (CIE1931) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 40/30/50/50 (Min.)(CR≥10) (L/R/U/D) |
| White Variation : | 1.32 (Max.)(9 points) |
| Sunlight Readable : | N |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS549HQ02 | Samsung | 5.5" | 720×1280 |
| AMS520BQ12-0 | Samsung | 5.2" | 1080×1920 |
| AMS497DX12-0 | Samsung | 5.0" | 720×1280 |
| AMS163AN01 | Samsung | 1.63" | 320×320 |
| AMS510CV02 | Samsung | 5.1" | 1080×1920 |
| AMS510CV01 | Samsung | 5.1" | 1080×1920 |
| AMS302AK03 | Samsung | 3.0" | 720×480 |
| AMS353FD01-0 | Samsung | 3.5" | 480×800 |
| AMS499QP89-0 | Samsung | 5.0" | 1080×1920 |
| AMS529BY03 | Samsung | 5.3" | 1080×1920 |
